An essential guide to help you be better informed when purchasing microscopes.
Microscopes are essential tools in education, research, clinical diagnostics and industrial inspection. Although many models look similar, choosing the right one means understanding optical systems, magnification needs, illumination, ergonomics, camera options and durability.
This guide breaks down everything you should know before purchasing.

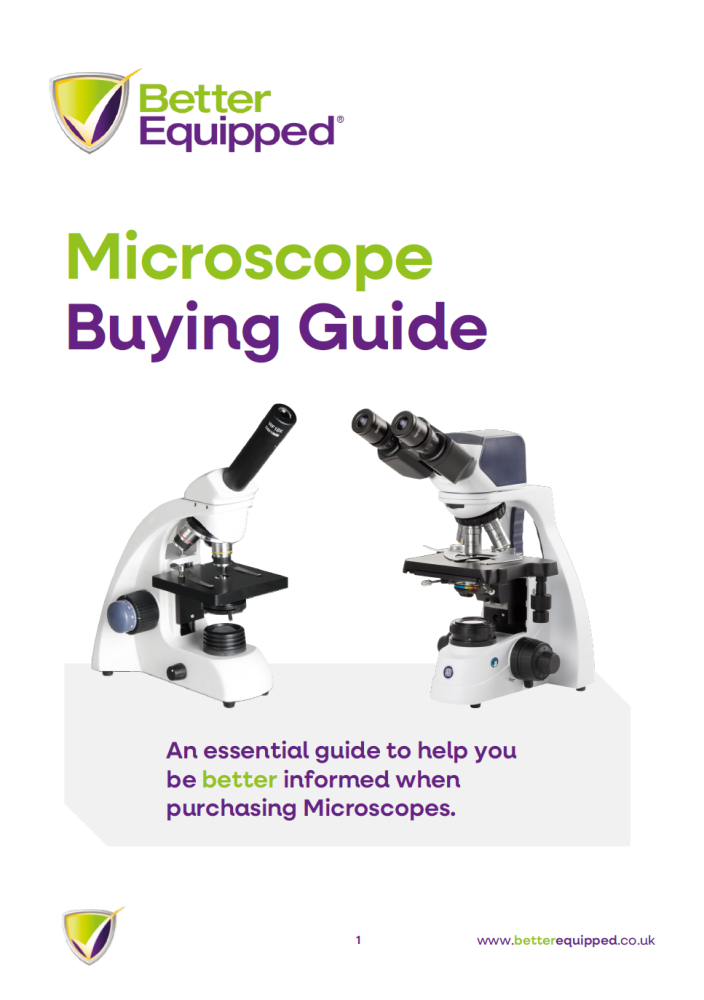

A downloadable PDF version of this guide can be opened by clicking the buying guide image.
Our advice in a nutshell: See beyond magnification.
When its comes to magnification a bigger number isn't necessarily better. Choose your microscope based on how you will use it and what you want to examine. Prioritise optical quality over magnification claims; as clear, sharp images matter far more than how "powerful" the microscope appears.

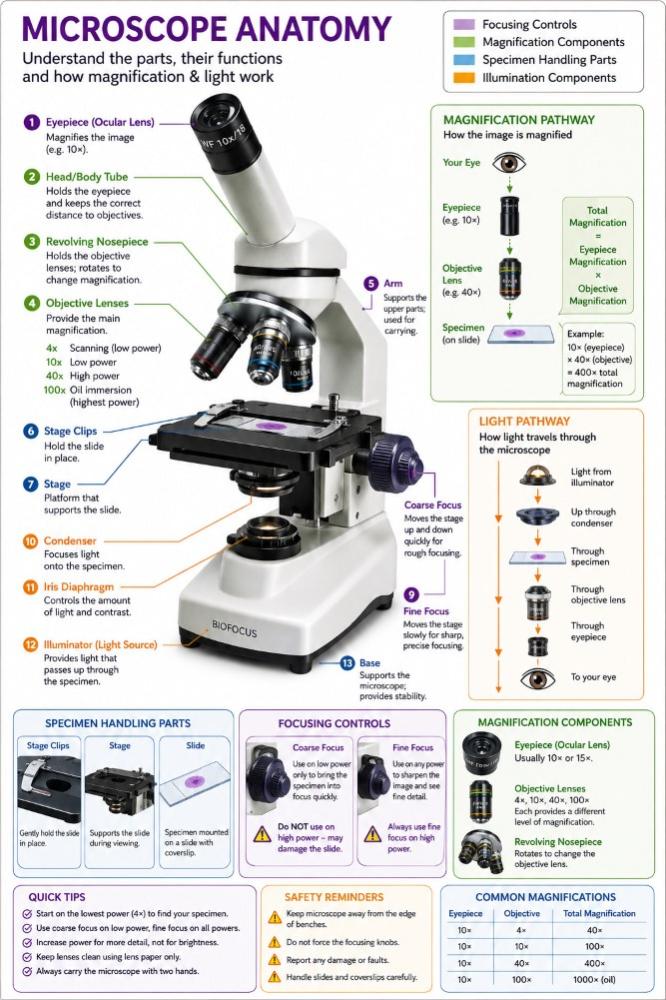

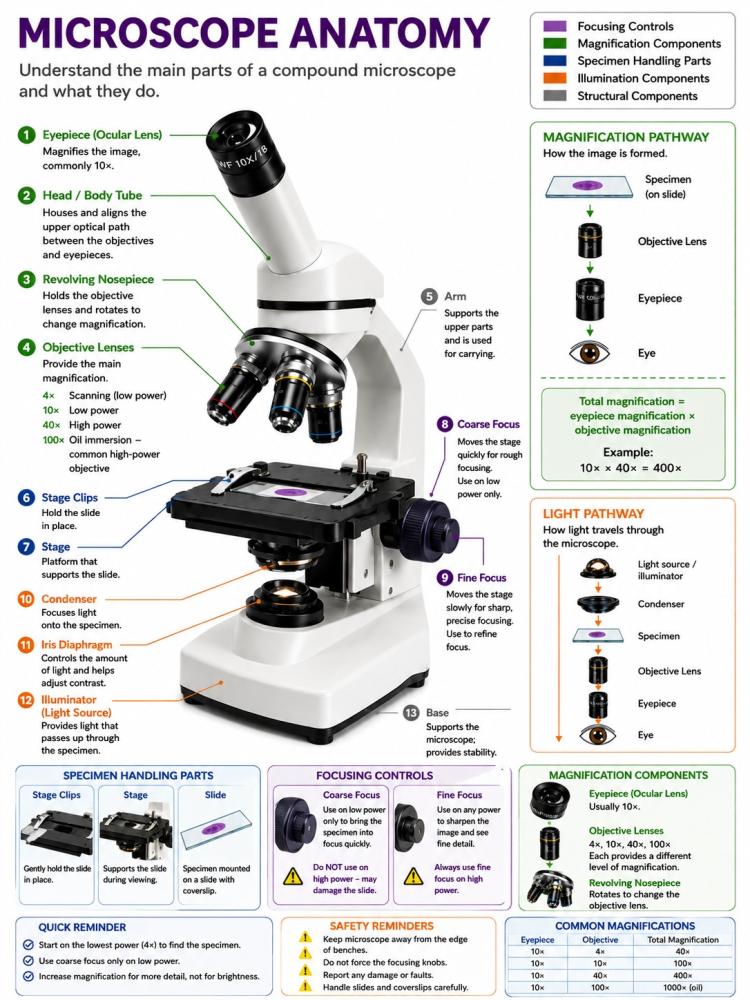

Microscope Components
Understanding the main parts of a microscope makes it easier to compare models and choose the right instrument for your application.
The key components include the eyepiece, revolving nosepiece, objective lenses, stage, stage clips, diaphragm, illuminator or light source, coarse focus, fine focus, arm and base.
A good-quality microscope should feel stable, focus smoothly, provide bright even illumination and use optics that match the level of detail you need to see.
1. Identify Your Primary Use Case
Start by deciding where the microscope will be used and what types of specimens you need to observe.
✓School / teaching labs
Durable construction, easy focusing, fixed or semi-plan lenses, LED or tungsten lighting, low maintenance and a limited set of objectives.
✓College / further education
Plan objectives, coaxial focus, brighter illumination and a mechanical stage for slide control.
✓Research / professional labs
High-precision plan or plan apochromat lenses, coaxial coarse/fine focus, trinocular head for cameras and modular upgrades.
Stereo microscopes, large working distances, adjustable zoom, ESD-safe options and built-in camera compatibility.

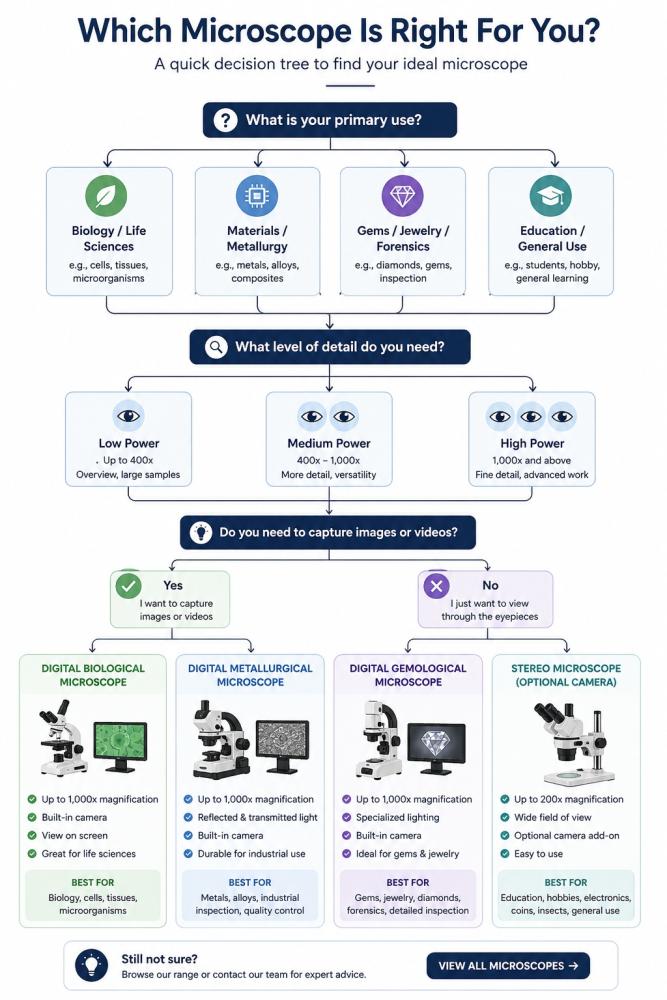

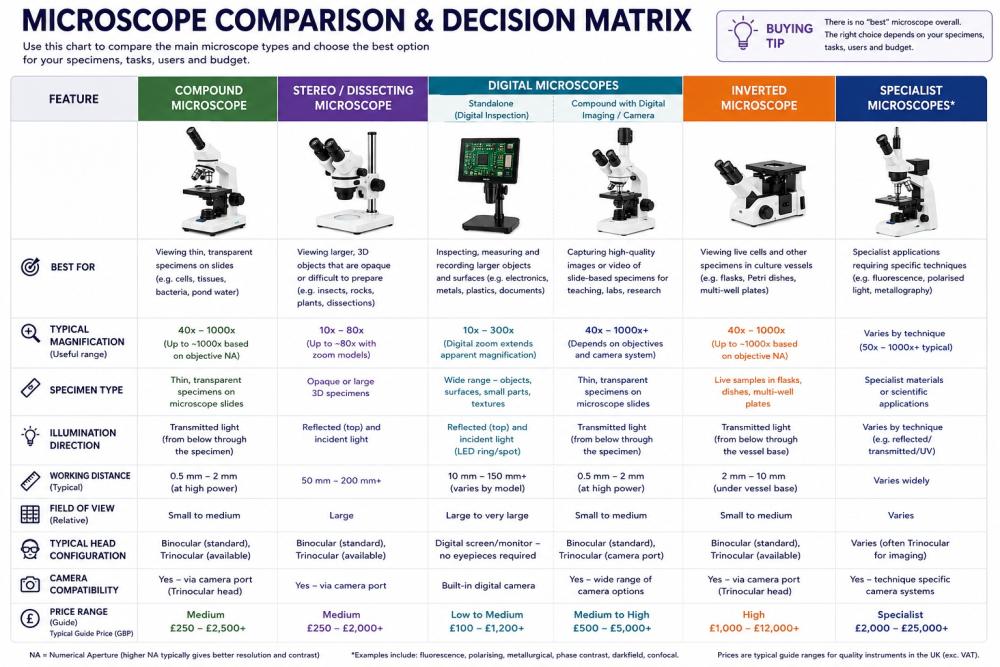

2. Choose the Microscope Type
Your application determines the type of microscope you need.
Compound Microscope
Best for cells, bacteria, slides and thin sections. Offers high magnification, typically 40× to 1000× or more, and is used in schools, labs, hospitals and universities.
Stereo / Dissecting Microscope
Best for larger 3D samples such as insects, rocks, circuit boards and school dissections. Lower magnification, typically 10× to 45× or more with zoom, with wide working distance and depth perception.
Digital Microscope
Best for demonstrations, classrooms and inspection tasks. Built-in cameras connect to a screen or PC and may not require eyepieces.
Inverted Microscope
Best for cell culture and observing samples in flasks or petri dishes. Objectives sit below the stage, making them ideal for liquid samples.
Specialist Microscopes
Polarising microscopes for geology and minerals, fluorescence microscopes for labelled samples in research and diagnostics, and metallurgical microscopes for opaque or polished surfaces.
3. Optical Quality and Objectives
Optics determine the brightness, clarity and accuracy of what you see.
Achromatic
Standard teaching level objectives that correct basic colour distortion.
Plan Achromatic
Flat-field objectives with sharp edges, ideal for teaching, clinical work and general research.
Plan Fluor / Semi Apochromatic
Brighter images and better colour correction, widely used in research.
Apochromatic
Highest correction with the best colour accuracy and resolution, for advanced imaging and research.

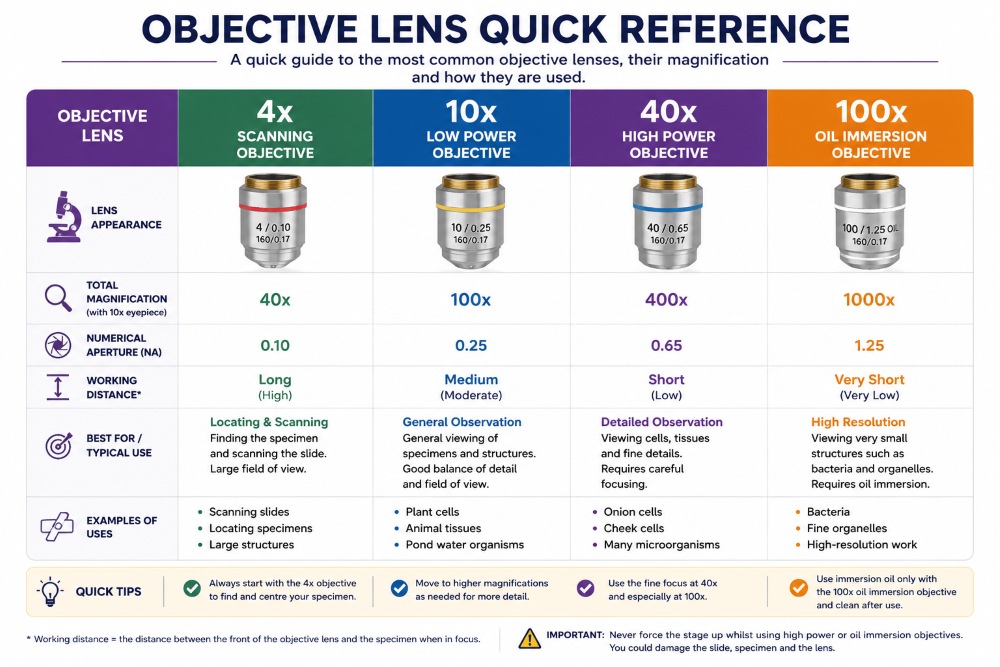

If the microscope will be used for photography, choose plan or better lenses for edge-to-edge clarity. Common objective sets include 4×, 10×, 40× dry and 100× oil. For stereo microscopes, zoom ranges such as 0.7× to 4.5× are typical.

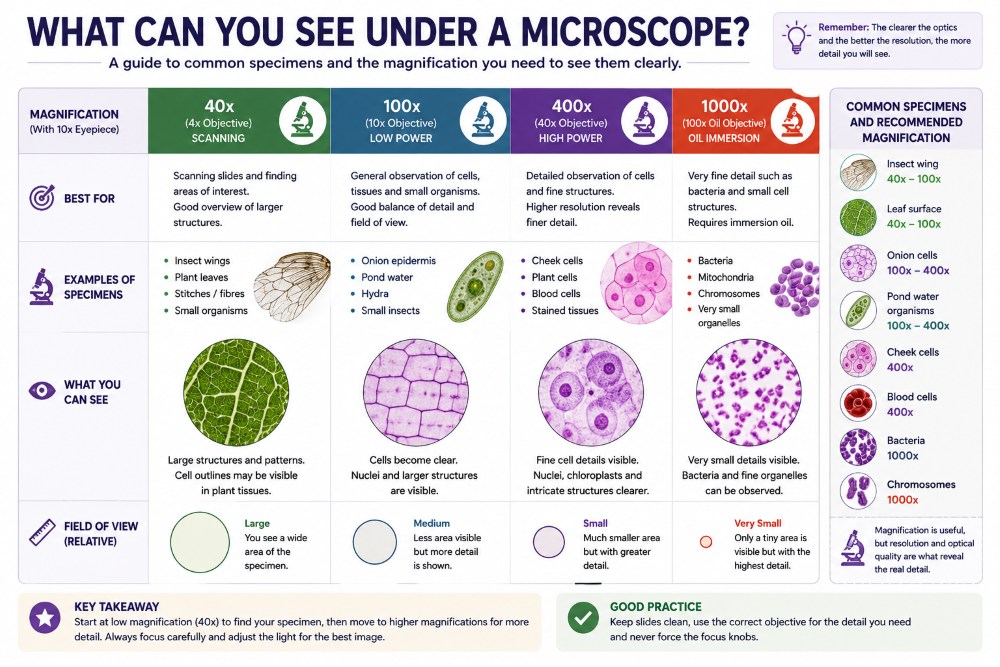

4. Magnification and Eyepieces
Magnification equals eyepiece multiplied by objective. For example, a 10× eyepiece with a 40× objective gives 400× total magnification.
Eyepiece options
10× is standard.
15× or 20× boosts total magnification.
Widefield eyepieces provide a larger view and are easier for beginners.
High eye relief eyepieces are more comfortable for glasses wearers.

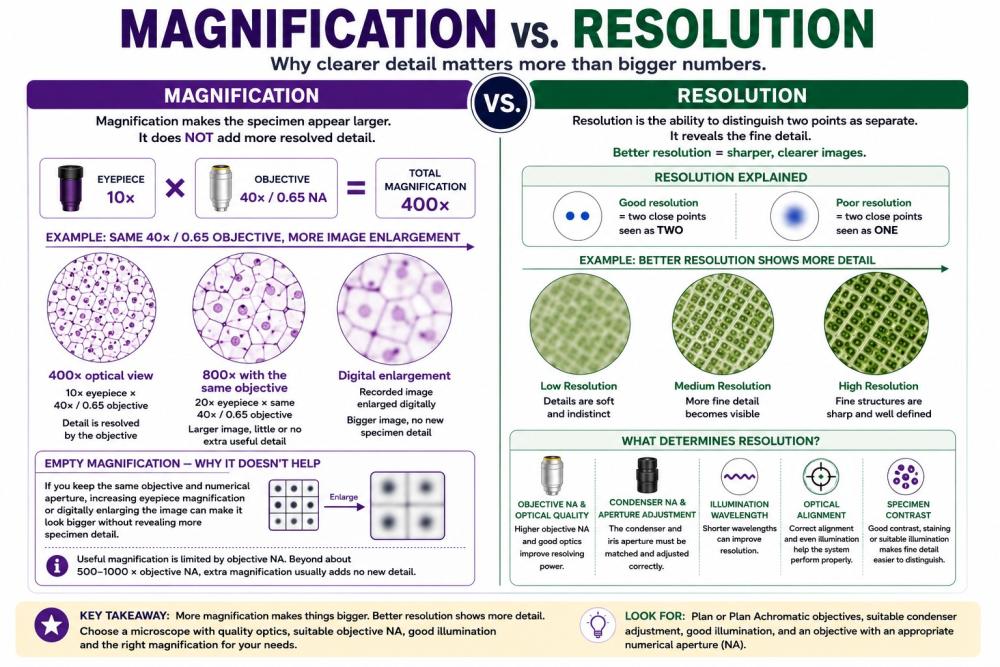

More magnification is not always better. Clarity and resolution matter more than extreme power.
5. Illumination System
Good lighting is critical for quality viewing.
LED Illumination
Long life, cool operation, low maintenance and stable brightness. Ideal for teaching and research environments, with tungsten-coloured LED also available.
Tungsten Halogen
Traditional filament bulb producing warm yellow light. Good for brightfield, polarised light and photomicrography where natural colour rendering matters.
Köhler Illumination
Provides optimal contrast and even lighting. Essential for high precision and clinical applications, usually found on mid-range and advanced microscopes.
For Stereo Microscopes
Top incident lighting for opaque samples, bottom transmitted lighting for translucent samples and ring lights for shadow-free illumination.
6. Mechanical Stage and Focus Controls
Mechanical stage
Allows smooth slide movement.
Essential for scanning samples, especially at higher magnifications.
Look for ball-bearing stages for smoothness and durability.
Focus system
Coaxial coarse and fine focus with combined knobs.
Tension adjustment for user comfort.
Stage stop to prevent crashing the objective into the slide, especially useful for students.
7. Build Quality and Ergonomics
Desirable features
All-metal frame for stability and durability.
Rubber-coated grips and adjustable eyepiece spacing for comfort.
Inclined head, usually 30° to 45°, for ergonomic viewing.
Trinocular head if camera integration is needed.
Reverse-facing objectives to protect lenses during slide changes.
Wide focusing knobs for precise control.
8. Digital Cameras & Imaging
If you plan to record images or display them for teaching, camera compatibility matters.
Camera options
USB cameras for PC imaging.
HDMI cameras for screens and TVs.
WiFi-enabled cameras for tablets and classroom sharing.
Consider
Sensor size, as larger generally means better image quality.
Included software, such as measurement tools, live preview and capture options.
Frame rate for live demonstrations.
Choose a trinocular microscope if you want to attach a camera without blocking an eyepiece.
9. Accessories and Add Ons
Prepared slide kits for schools and demonstrations.
Additional objectives.
Phase contrast kits and darkfield condensers.
Polarising filters.
Mechanical stage upgrades.
Dust covers and storage cases.
Calibration slides, stage micrometers and graticule eyepieces for measurement work.
10. Maintenance and Longevity
Look for
Easy-clean optical surfaces.
Sealed body construction to protect internal gears from dust.
LED modules with long service life.
Replaceable fuses, bulbs if halogen and stage clips.
Available spare parts and support.
Routine care includes
Keeping lenses dust-free.
Storing with a dust cover.
Avoiding touching optics with fingers.
Annual servicing for high-use microscopes.
11. Microscope Buying Checklist
Before purchasing, make sure you confirm:
1Purpose & use
What will I mainly observe, such as pond water, cells, bacteria, insects, minerals, electronics or fabrics?
Is this for education, hobby or professional work?
Will children or beginners be using it?
2Type of microscope
Do I need a compound or stereo dissecting microscope?
Compound microscopes are for cells, bacteria and thin specimens.
Stereo microscopes are for insects, plants, coins and circuit boards.
Is digital imaging important, or is eyepiece-only fine?
3Magnification & optics
What is the useful magnification range, not just maximum magnification?
What objective lenses are included, such as 4×, 10×, 40× or 100×?
Are the lenses achromatic, plan or plan-apochromatic?
Is the image sharp across the whole field of view?
4Illumination & contrast
What type of light source does it use? LED is preferred for longevity.
Is the brightness adjustable?
Does it have a condenser and diaphragm for contrast control?
Can it support darkfield or phase contrast later if needed?
5Build quality & ease of use
Is the focus mechanism smooth and precise?
Does it feel sturdy and stable at higher magnifications?
Is it comfortable for long viewing sessions?
Is the stage mechanical and easy to control?
6Expandability & compatibility
Can I upgrade lenses or add accessories later?
Can I attach a camera or phone adapter?
7Maintenance & support
What warranty is included?
Are replacement bulbs, lenses and parts easy to get?
Is there local or reliable customer support?
8Budget & value
What am I paying for in optics versus features?
Does the specification support the work I actually need to do?
9Red flags to watch for
Claims of extremely high magnification, such as 2000×, with low-quality optics.
Plastic focus mechanisms.
No condenser on compound microscopes.
Vague descriptions of lenses or illumination.
