A practical guide to setting up, focusing, viewing, measuring and caring for a school or laboratory microscope.
A microscope is an essential piece of science equipment used to examine specimens that are too small to see clearly with the unaided eye. Correct technique helps users obtain clear, useful images while protecting the slide, objective lenses and microscope.
This guide primarily explains how to use a standard compound light microscope for viewing thin specimens on slides. Stereo, digital and specialist microscopes may use different preparation, illumination and focusing methods, so always follow the instructions supplied with the instrument.
This guide was written and reviewed by Better Equipped's technical team, drawing on experience supplying microscopes, accessories, slides and practical science equipment to schools, colleges and laboratories throughout the UK. Model-specific instructions and your organisation's approved procedures should always take priority.

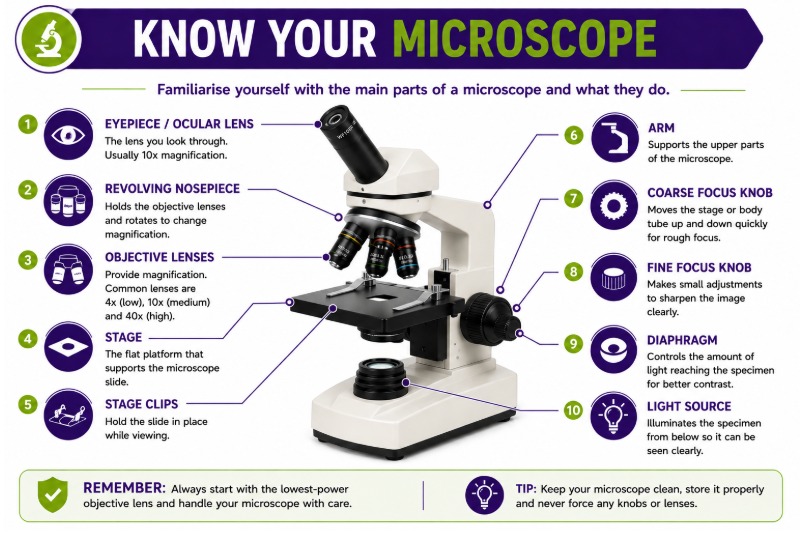

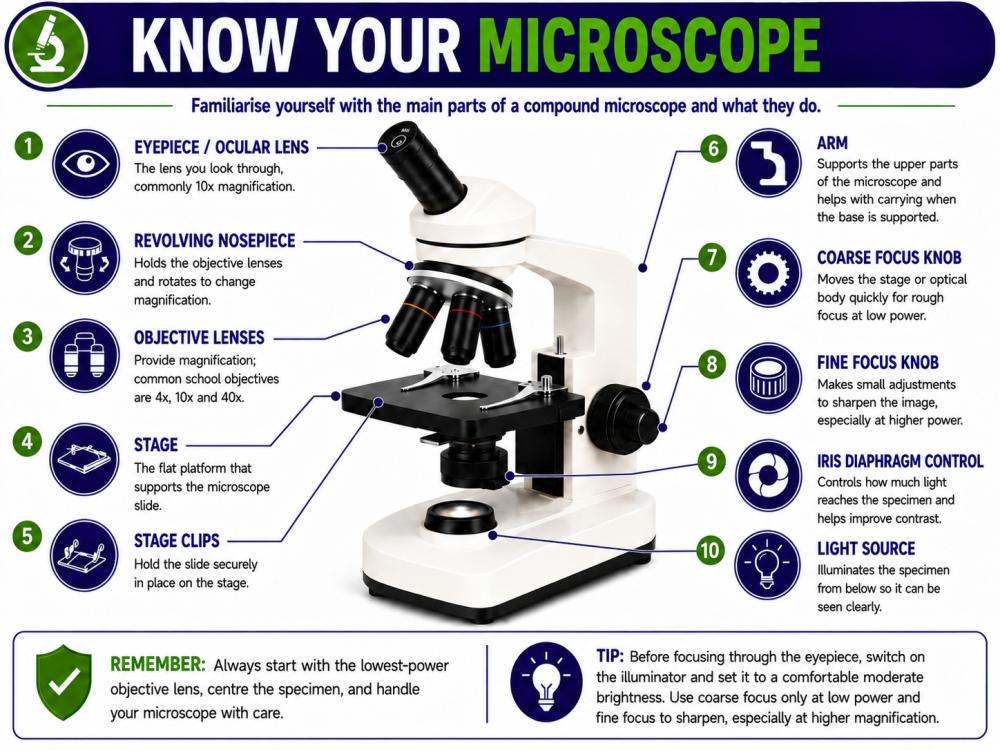

The lens you look through. A 10× eyepiece is common on school microscopes.
The lenses closest to the specimen. Common school objectives include 4×, 10× and 40×. A 100× oil-immersion objective is an advanced option on some microscopes.
Holds the objective lenses and rotates to place the selected objective in the optical path. It should click positively into position.
The stage supports the slide. The central aperture allows transmitted light to pass through the specimen.
Hold and position the slide. A mechanical stage uses X–Y controls for precise movement.
Illuminates the specimen from below. Some older microscopes use a mirror instead of a built-in lamp.
The condenser concentrates light onto the specimen. The iris diaphragm adjusts the illumination aperture and affects brightness, contrast and resolution.
Makes relatively large changes to the distance between the specimen and objective. It is normally used only at low power.
Makes small adjustments to sharpen the image and is the correct control for higher-power focusing.
Support the microscope and provide stability. Use the approved carrying points when moving the instrument.
On binocular models, interpupillary and dioptre adjustments help both eyes see one correctly focused image.
Where fitted, this limits movement and helps prevent an objective from being driven into the slide. It should only be adjusted by an authorised person.
Understanding common terminology makes it easier to follow practical instructions, compare microscope specifications and describe observations accurately.
| Term | Meaning |
|---|---|
| Eyepiece / Ocular Lens | The lens viewed through by the user. A 10× eyepiece is common on school microscopes. |
| Objective Lens | The main magnifying lens positioned close to the specimen. Common objectives include 4×, 10× and 40×. |
| Total Magnification | Eyepiece magnification multiplied by objective magnification. |
| Resolution | The ability to distinguish two close points as separate details. Increasing magnification cannot reveal detail beyond the microscope's resolving power. |
| Field of View | The area visible at one time. It normally becomes smaller as magnification increases. |
| Working Distance | The distance between the front of the objective and the specimen when focused. It normally decreases at higher objective magnification. |
| Depth of Field | The thickness of the specimen that appears acceptably sharp at one focus setting. It usually decreases at higher magnification. |
| Mechanical Stage | A stage with controls that move the slide precisely in two directions. |
| Condenser | A lens system that concentrates and directs light onto the specimen. |
| Iris Diaphragm | An adjustable aperture that changes the cone of light entering the objective and therefore influences brightness, contrast and resolution. |
| Specimen | The object, sample or material being examined. |
| Slide | A thin piece of glass or plastic used to support a specimen for compound microscopy. |
| Coverslip | A thin glass or plastic cover placed over a mounted specimen to flatten it, reduce evaporation and protect the objective. |
| Wet Mount | A temporary preparation in which a specimen is mounted in a drop of liquid beneath a coverslip. |
| Oil Immersion | An advanced technique that uses specified immersion oil with an objective marked for oil use, commonly a 100× objective. |
| Compound Microscope | A microscope that uses an objective and eyepiece to view thin specimens, normally with transmitted light. |
| Stereo Microscope | A low-magnification microscope used for larger, often three-dimensional objects and surface detail. |
| Digital Microscope | A broad term for a microscope that sends an image to a screen or computer and may support image capture or measurement. |
Many viewing problems begin with poor specimen preparation. A clean, thin and correctly mounted specimen is easier to illuminate, focus and interpret.

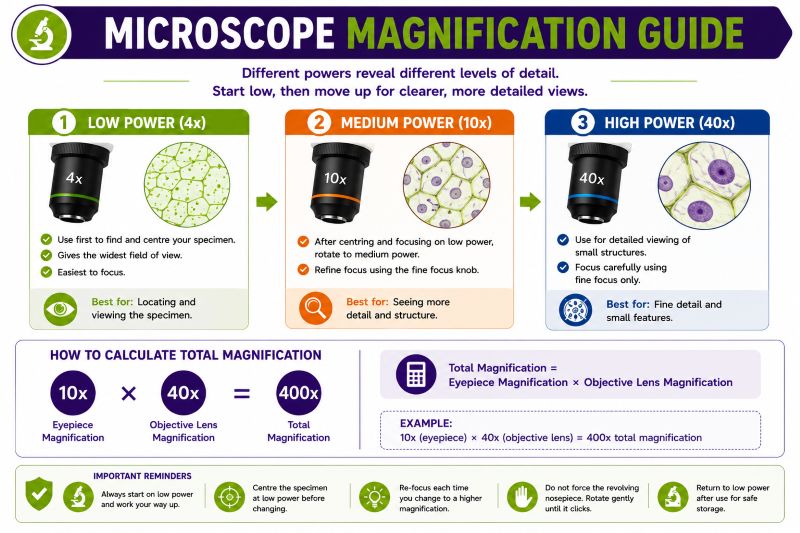

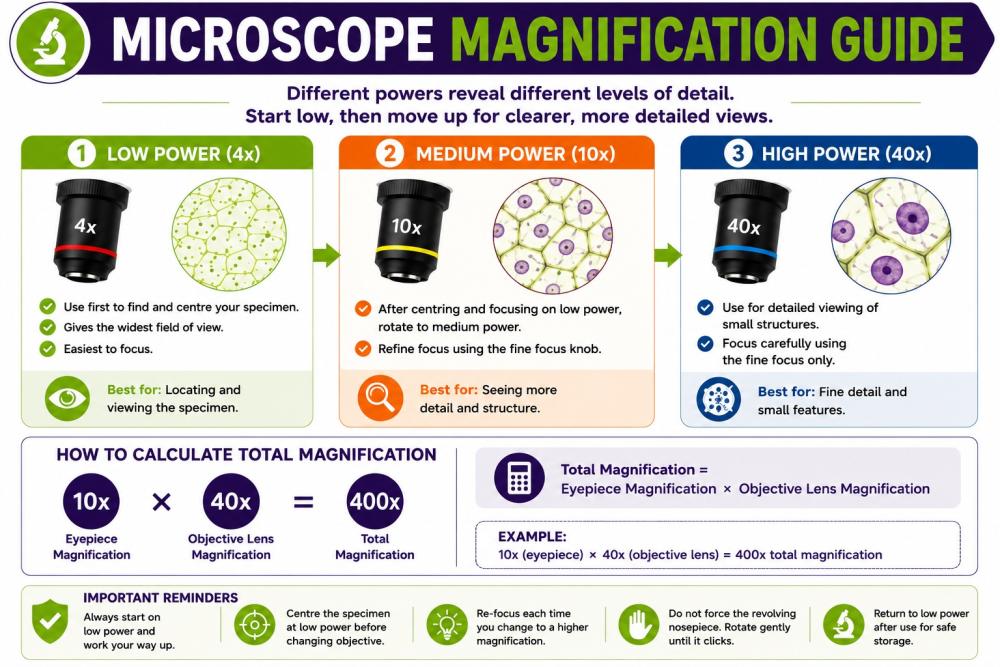

Total magnification is calculated by multiplying the eyepiece magnification by the objective magnification.
| Eyepiece | Objective | Total Magnification | Typical Use |
|---|---|---|---|
| 10× | 4× | 40× | Finding and centring a specimen; viewing a wide area. |
| 10× | 10× | 100× | General observation of cells and tissues. |
| 10× | 40× dry | 400× | Viewing smaller cell structures with fine focus. |
| 10× | 100× oil | 1000× | Advanced use with a prepared specimen and an objective specifically marked for immersion oil. |
Makes the image appear larger, but does not automatically produce more useful detail.
Less of the specimen is visible, so centring before changing objective is essential.
The high-power objective normally sits closer to the slide, increasing the need for careful fine focusing.
A thinner layer of the specimen remains sharp at one focus setting.
GCSE microscopy commonly involves observing cells, producing a clear biological drawing and relating the drawing or image to the actual size of the specimen.
Convert measurements before calculating. Remember that 1 mm = 1000 μm.
Measure the image at its widest relevant point using a ruler, then use the stated magnification or scale bar.
If the field diameter is known, estimate how many specimens would fit across it and divide the diameter by that number.
An eyepiece graticule must be calibrated against a stage micrometer for each objective used.
The most useful magnification depends on the specimen, its preparation and the microscope's optical quality. The ranges below are practical starting points rather than absolute rules.
| Specimen or Object | Useful Magnification | Best Microscope Type | Notes |
|---|---|---|---|
| Insect wings, leaves, rocks and larger objects | Approximately 10× to 45× | Stereo microscope | Best for surface detail and larger three-dimensional objects. |
| Prepared teaching slides | 40× to 400× | Compound microscope | Suitable for demonstrations, observation and biological drawing. |
| Onion epidermal cells | 100× to 400× | Compound microscope | Useful for observing cell walls, nuclei when stained and general plant-cell organisation. |
| Cheek epithelial cells | 100× to 400× | Compound microscope | Use only under an approved human-cell sampling, staining and disposal procedure. |
| Pond-water organisms | 40× to 400× | Compound microscope | Begin at low power to find moving organisms. Use appropriate hygiene precautions. |
| Prepared blood-cell slides | 400× and above | Compound microscope | Use commercially prepared or otherwise approved fixed slides rather than fresh human blood. |
| Prepared, fixed and stained bacterial slides | Often 1000× | Compound microscope with a 100× oil objective | Individual cells may appear as small shapes or arrangements, but fine internal bacterial ultrastructure is not resolved by a standard school light microscope. |

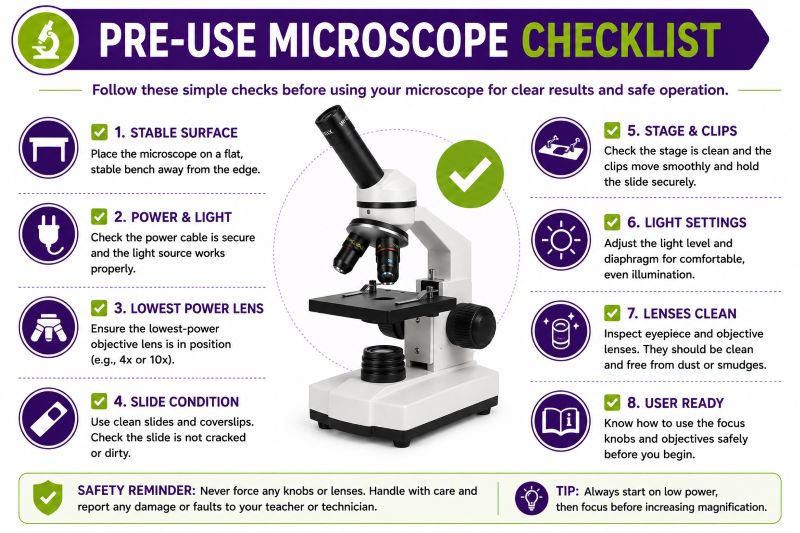

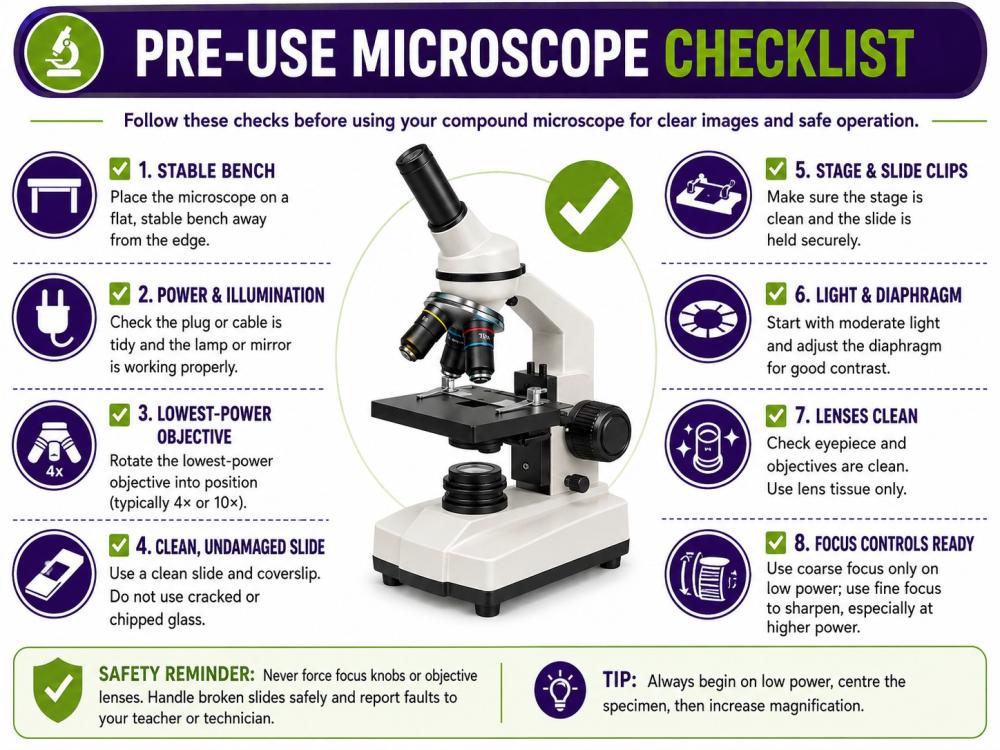

This checklist is useful for students, teachers and technicians when introducing practical microscopy.
Microscopy activities develop preparation, observation, focusing, drawing, measurement and analytical skills. Each activity should be carried out under the organisation's approved procedure and risk assessment.
| Activity | Typical Equipment | Skills Practised | Important Note |
|---|---|---|---|
| Viewing onion epidermal cells | Microscope, slide, coverslip, iodine solution, pipette, forceps | Specimen preparation, staining, focusing, drawing and magnification. | Follow the safety information for iodine solution and avoid skin or eye contact. |
| Viewing cheek epithelial cells | Microscope, slide, coverslip, approved stain, single-use sampling tool | Safe sample preparation, staining, observation and comparison with plant cells. | Use an approved human-cell procedure. Do not share sampling tools. |
| Observing pond water | Microscope, slide, coverslip, transfer pipette, pond-water sample | Locating moving organisms, observation and field-of-view awareness. | Avoid splashes, wash hands and dispose of the sample as instructed. |
| Prepared slide observation | Microscope and prepared slides | Focusing, changing magnification, identifying structures and drawing. | Check slides for chips before use. |
| Leaf or plant-tissue observation | Microscope, slides, coverslips, plant material, forceps and suitable cutting tools | Specimen preparation, comparison and measurement. | Thin sections may require sharp tools and must be prepared under suitable supervision. |
| Estimating cell size | Microscope, prepared specimen, field-of-view data or calibrated graticule | Measurement, unit conversion, magnification and estimation. | An eyepiece graticule must be calibrated for each objective. |
Used for thin specimens on slides, normally with transmitted light and total magnifications from approximately 40× to 400× in routine school work.
Used for larger objects, dissections and surface detail at lower magnification. Many specimens can be examined directly without a conventional glass slide.
Display an image on a monitor or computer and may allow image capture, measurement and classroom sharing. The optical design may be compound, stereo or handheld.
The most useful accessories depend on the specimen, microscope type and activity. The groups below cover the main equipment used for preparation, observation, digital capture and optical care.
Ready-made specimens are useful for teaching, demonstrations, comparison work and practising focusing without preparing a fresh sample.
Clean slides and coverslips are used for suitable fresh specimens and temporary wet mounts. Do not use chipped, cracked or heavily scratched glass.
Approved stains can improve contrast. Transfer pipettes move small liquid samples, while forceps help position coverslips and suitable specimens. Use a calibrated device when an accurately measured volume is required.
Dissection tools and dishes may support approved examination of larger, non-hazardous specimens with a stereo microscope. Microbial cultures require a separate microbiology procedure and risk assessment.
Microscope cameras support live display, classroom demonstrations, image capture, annotation and digital record keeping. Check compatibility with the microscope and software before purchase.

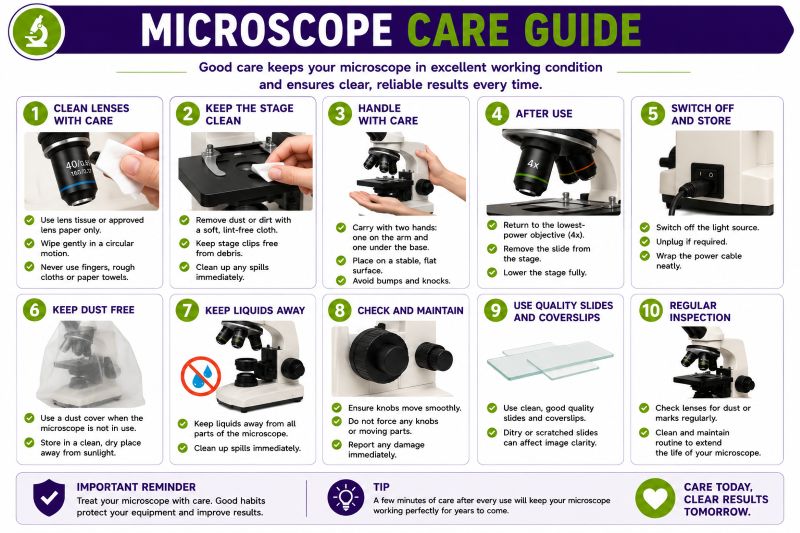

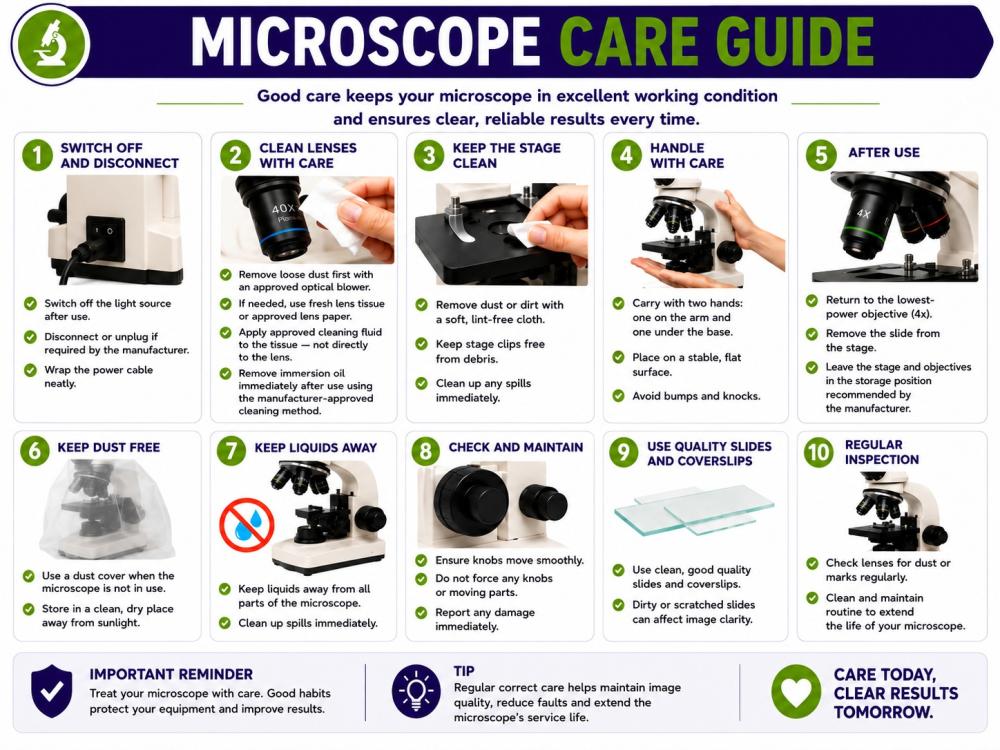

Fresh optical lens tissue should be used only with the cleaning method and approved fluid recommended by the manufacturer. Ordinary tissues, paper towels and household cleaners are unsuitable for microscope optics.
| Mistake | Why It Matters | How to Avoid It |
|---|---|---|
| Starting on high power | The field of view is small and the specimen is difficult to find. | Begin with the lowest-power objective and centre the specimen. |
| Using coarse focus at high power | The objective may strike the slide, damaging the slide, coverslip, specimen or lens. | Use coarse focus only at low power and fine focus at higher magnification. |
| Approaching the slide while looking only through the eyepiece | The user cannot see whether the objective is about to touch the slide. | Watch from the side during the initial low-power approach. |
| Cleaning optics with ordinary tissue | Fibres, contaminants or abrasive particles can damage or smear optical surfaces. | Use approved optical lens tissue and the manufacturer's cleaning method. |
| Not centring the specimen | The required detail may disappear when magnification is increased. | Centre the feature before changing objective. |
| Using a thick or poorly mounted specimen | Light may not pass through evenly and the objective may not focus correctly. | Prepare a thin sample and lower the coverslip carefully. |
| Using too much illumination | The image may appear pale, washed out or low in contrast. | Adjust the lamp and diaphragm rather than using maximum brightness automatically. |
| Carrying the microscope with one hand | The microscope is more likely to be dropped or knocked. | Support the base and use the arm or approved carrying point. |
| Leaving immersion oil on the objective | Oil attracts contamination and may degrade image quality or damage materials over time. | Clean the oil objective immediately after use. |
| Microscope Troubleshooting | ||
|---|---|---|
| Problem | Possible Cause | What to Do |
| Image is genuinely out of focus | Incorrect focus, objective not fully engaged, unsuitable specimen thickness, slide upside down or contaminated objective. | Return to low power, confirm the objective has clicked into place, refocus safely and check the slide and accessible optics. |
| Cannot see anything | Light off, specimen not over the aperture, objective between positions, slide incorrectly placed or eyepieces not adjusted. | Check the light path, centre the specimen, click the objective into place and reset the microscope at low power. |
| Image is pale or washed out | Illumination too bright, diaphragm too open or specimen lacks contrast. | Reduce brightness, adjust the diaphragm and confirm that the preparation or stain is suitable. |
| Image is too dark | Light level too low, diaphragm too restricted, specimen not centred or objective not engaged. | Increase illumination gradually, adjust the diaphragm and check alignment. |
| Only part of the field is illuminated | Objective not clicked into place, condenser misaligned or an obstruction in the light path. | Engage the objective correctly and follow the manufacturer's illumination setup procedure. |
| Specimen disappears at higher magnification | The required feature was not centred before changing objective. | Return to low power, centre the feature, refocus and try again. |
| Slide cracks or objective touches it | Objective brought too close, coarse focus used at high power or stage stop incorrectly set. | Stop immediately, switch off if necessary and report the incident. Do not continue with damaged glass or optics. |
| Spots move when the slide is moved | Dust or contamination is probably on the slide or specimen. | Replace or clean the slide as appropriate. |
| Spots stay fixed when the slide moves | Contamination may be on an accessible optical surface. | Follow the approved optical-cleaning procedure or ask an authorised person to inspect it. |
| Air bubbles obscure the specimen | Coverslip lowered too quickly, too much liquid used or specimen too thick. | Prepare a new slide and lower the coverslip slowly at an angle. |
| Both eyes do not see one image | Interpupillary distance or dioptre adjustment is incorrect. | Adjust the binocular head according to the manufacturer's instructions. |

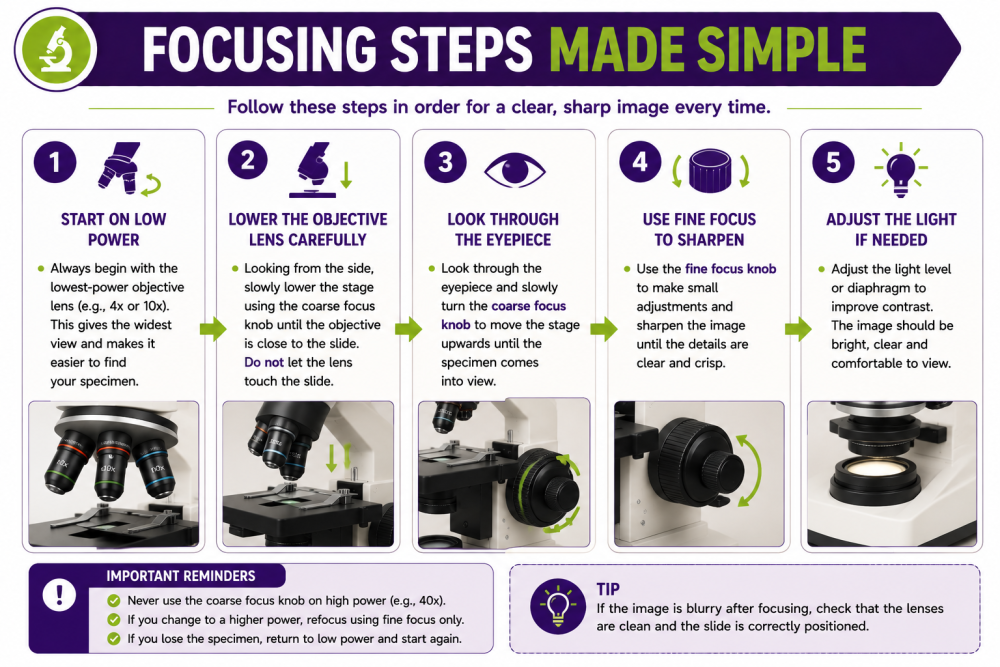

Start with the lowest-power objective. It provides the widest field of view, greatest working distance and easiest route to finding and centring the specimen.
The specimen may not be correctly focused, the objective may not be fully engaged, the specimen may be too thick or an optical surface may be contaminated. Return to low power and check each possibility systematically.
The illumination may be too bright, the diaphragm may be too open or the specimen may have insufficient contrast. Reduce the light gradually and adjust the diaphragm.
Check that the light is on, the objective has clicked into place, the specimen is over the stage aperture and the microscope is set to low power.
First remove loose dust using the approved method. If wiping is needed, use fresh optical lens tissue and a suitable cleaning fluid applied to the tissue rather than directly to the lens. Follow the manufacturer's instructions.

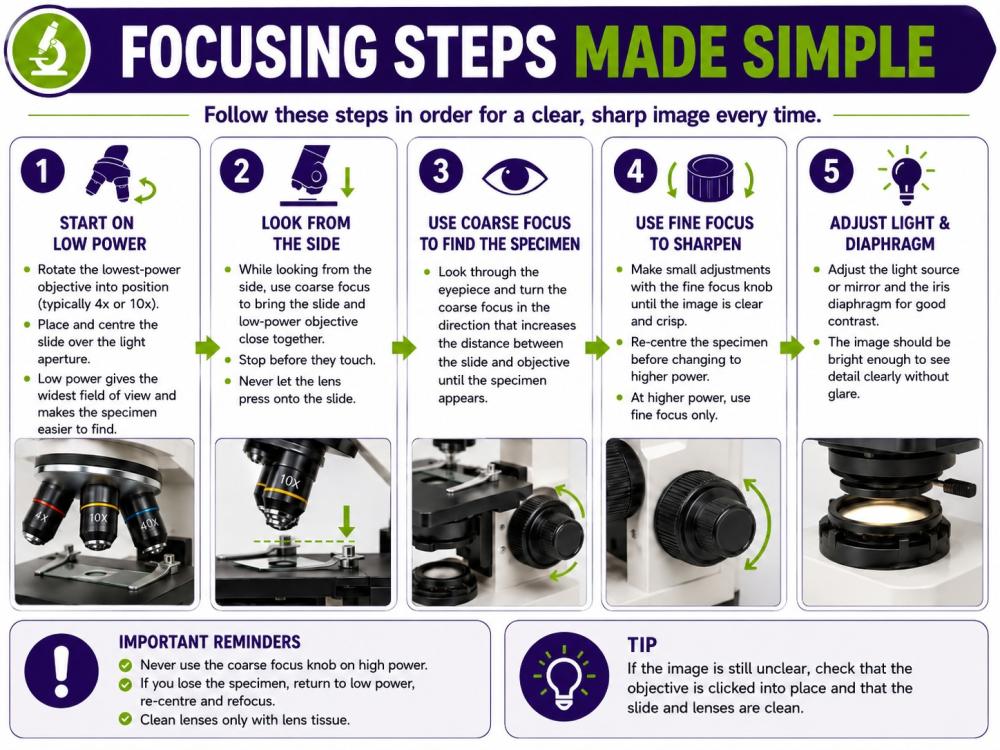

Coarse focus makes relatively large changes and is normally used only at low power. Fine focus makes small changes and is used to sharpen the image, especially at higher magnification.
The required detail was probably not centred. Return to low power, centre it precisely, refocus and then select the higher-power objective.
A conventional compound microscope normally produces an inverted image. Moving the slide in one direction makes the viewed image appear to move in the opposite direction.
A compound transmitted-light microscope normally requires a suitably thin specimen mounted on a slide. A stereo microscope can examine many larger three-dimensional objects directly without a conventional glass slide.
No. Use immersion oil only with an objective specifically marked for oil use and only in accordance with the microscope and oil manufacturer's instructions.
Depending on the activity, useful equipment may include slides, coverslips, prepared specimens, transfer pipettes, forceps, approved stains, optical lens tissue and measurement accessories.
The right microscope depends on the specimen type, required magnification, optical quality, illumination, stage controls, camera compatibility and the experience of the user.
Our Microscope Buying Guide explains the differences between compound, stereo and digital microscopes, as well as objective lenses, illumination systems and common accessories.
View Microscopes View Microscope Buying Guide Contact Us for AdviceThis guide was written and reviewed by Better Equipped's technical team to support safe, effective school and laboratory microscopy.
It provides general guidance for compound light microscopes. Always follow the microscope manufacturer's instructions, your organisation's risk assessments and the approved procedure for the specimen, stain or activity being used.
Last reviewed and updated: July 2026
More practical science resources: betterequipped.co.uk/better-resources
