Better Equipped Practical Teaching Guides
Measure acceleration using stopwatches, light gates and data loggers, investigate how ramp height or angle affects trolley acceleration, and extend the practical to explore the effects of force and total moving mass.
Teacher note: This resource is provided as a practical support guide to accompany laboratory equipment. Teachers should adapt procedures and risk assessments to suit their curriculum requirements, examination board specifications and local laboratory policies.
In the core investigation, students release a dynamics trolley down a ramp and measure its acceleration. The recommended method uses two light gates and a data logger. A low-equipment stopwatch method can be used for comparison, while an extension using a trolley, pulley and hanging masses investigates the effects of force and total moving mass.
Students keep the trolley, release point, ramp surface and light-gate positions constant while changing only the ramp height or angle.
Core enquiry question: How does ramp height or angle affect the acceleration of a trolley?
Acceleration is central to road safety, vehicle design, robotics, sport and fairground engineering. The investigation makes a change in velocity visible and measurable, connects forces to motion and develops the calculation and graph skills that recur throughout GCSE Physics.
Suggested teaching sequence: Teach the ramp method first to establish how acceleration is measured. Use the trolley-pulley extension after students understand F = ma and the meaning of a fair test.
Acceleration is the rate at which velocity changes. An object accelerates when it speeds up, slows down or changes direction.
a = (v - u) / t
a = acceleration (m/s2)
v = final velocity (m/s)
u = initial velocity (m/s)
t = time for the velocity change (s)
F = ma
For constant mass, a larger resultant force produces a larger acceleration. For constant force, a larger total mass produces a smaller acceleration.
The gradient of a velocity-time graph gives acceleration. A straight sloping line shows constant acceleration; a changing gradient shows non-uniform acceleration.

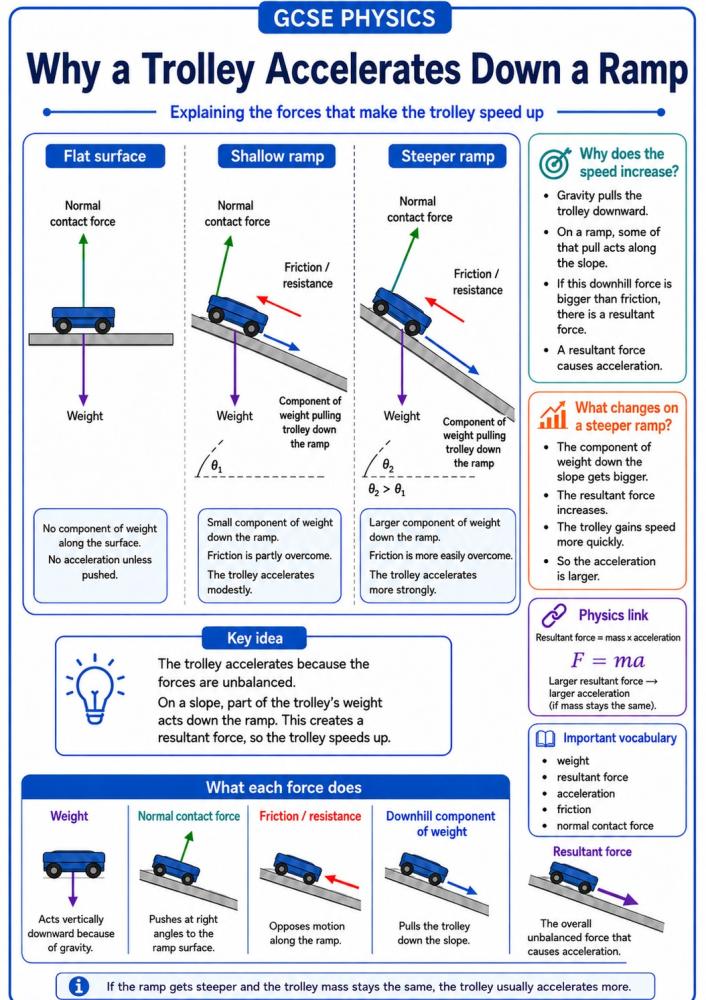

| Forces on the trolley | What changes on a steeper ramp? |
|---|---|
| Weight acts vertically downwards. | The downhill component of weight is larger. |
| The ramp exerts a normal contact force. | The resultant force down the ramp is larger. |
| Friction and rolling resistance oppose motion. | For the same trolley mass, acceleration is larger. |
| A component of the trolley's weight acts down the ramp. | The exact result is affected by friction and wheel condition. |
Eye protection, particularly when hanging masses are used; closed shoes; and a clear floor area.

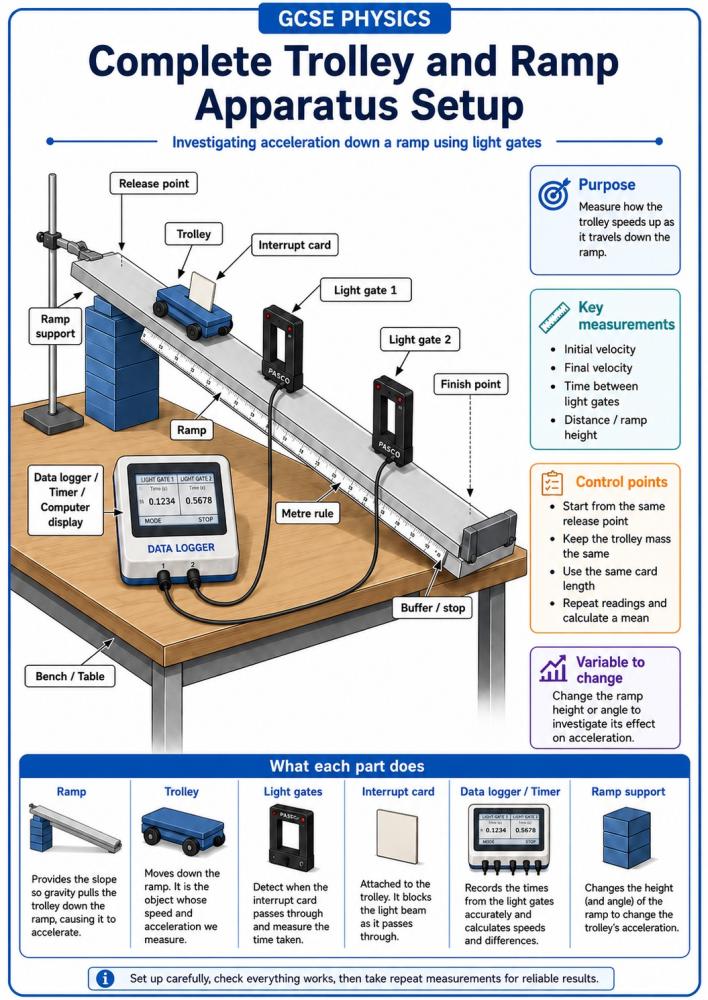

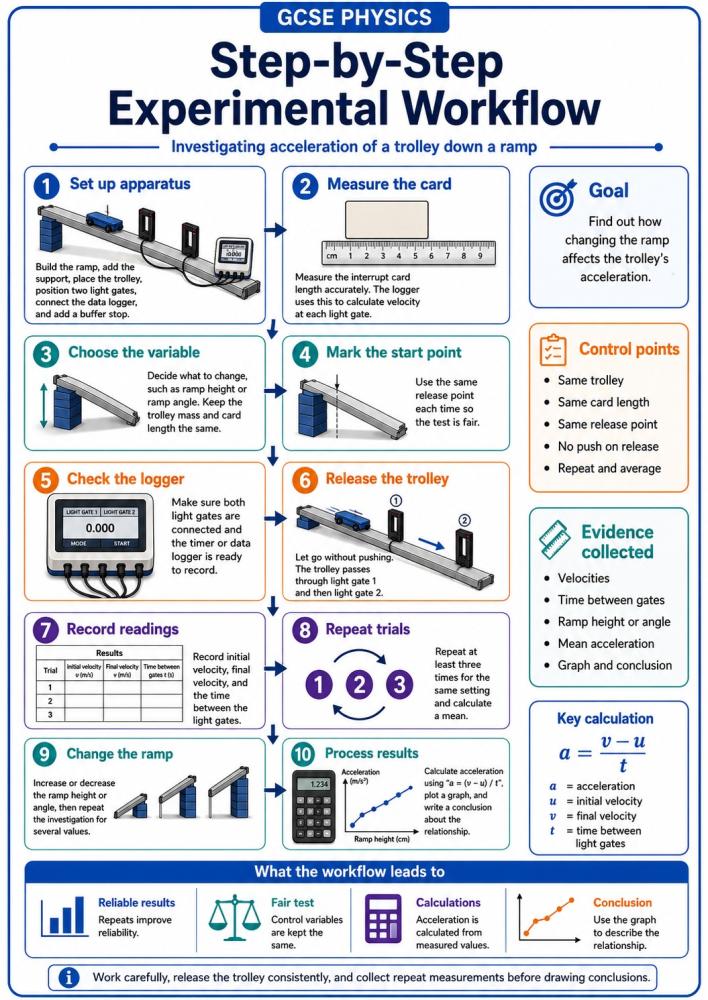

Place the ramp on the bench with a foam buffer or stop block at the lower end. Raise the upper end using blocks or a laboratory jack and check that the ramp cannot slip.
Attach the interrupt card firmly and measure its length. Check that the trolley wheels rotate freely and that no added mass can fall off.
Mark a release line. Position light gate 1 a fixed distance below it and light gate 2 farther down the ramp. Measure and record the separation between the gates.
Measure the vertical height of the raised end or use a protractor/inclinometer to record the angle. Use a modest starting angle so the trolley remains controlled.
Select the correct mode. If the logger does not calculate acceleration directly, record the velocity at each gate and the time between those velocity measurements.
Place the trolley at the marked release line. Release it without pushing and keep hands clear of the light gates.
Record initial velocity u, final velocity v and time interval t, or record the acceleration displayed by the logger. Catch the trolley safely at the bottom.
Use a = (v - u) / t. Include units and a sensible number of significant figures. Where possible, retain the raw speed and time readings even if the logger displays acceleration.
Repeat at least three times at the same ramp setting. Investigate any anomalous reading before calculating the mean acceleration.
Increase the height or angle in measured steps. Do not move the release line or light gates. Repeat the full procedure for at least five settings.
| Variable type | Variable |
|---|---|
| Independent variable | Ramp height (cm) or ramp angle (°) |
| Dependent variable | Acceleration of the trolley (m/s2) |
| Control variables | Same trolley and total mass |
| Same release position and release method | |
| Same light-gate positions and separation | |
| Same ramp surface and wheel condition | |
| Same interrupt card and card length | |
| Same logger settings and data-processing method |
Fair-test reminder: change only the ramp height or angle. Keep the trolley, release position, light-gate positions, card length and data-processing method constant.
| Ramp height (cm) | Angle (°) | Acceleration 1 (m/s2) | Acceleration 2 (m/s2) | Acceleration 3 (m/s2) | Mean (m/s2) | Range (m/s2) |
|---|---|---|---|---|---|---|
| Height (cm) | Angle (°) | Trial 1 | Trial 2 | Trial 3 | Mean acceleration (m/s2) |
|---|---|---|---|---|---|
| 5 | 2.4 | 0.30 | 0.32 | 0.31 | 0.31 |
| 10 | 4.8 | 0.70 | 0.72 | 0.71 | 0.71 |
| 15 | 7.2 | 1.08 | 1.11 | 1.10 | 1.10 |
| 20 | 9.6 | 1.48 | 1.51 | 1.50 | 1.50 |
| 25 | 12.0 | 1.84 | 1.89 | 1.88 | 1.87 |
u = 0.66 m/s
v = 1.15 m/s
t = 0.44 s
a = (1.15 - 0.66) / 0.44 = 1.1 m/s2 (2 s.f.)
Calculate acceleration for every trial using the same method. Identify anomalous readings, calculate a mean acceleration for each ramp setting and calculate a range to compare the spread of repeated readings.
Example values are illustrative only. Actual results depend on ramp surface, trolley condition, angle, gate positions and friction.

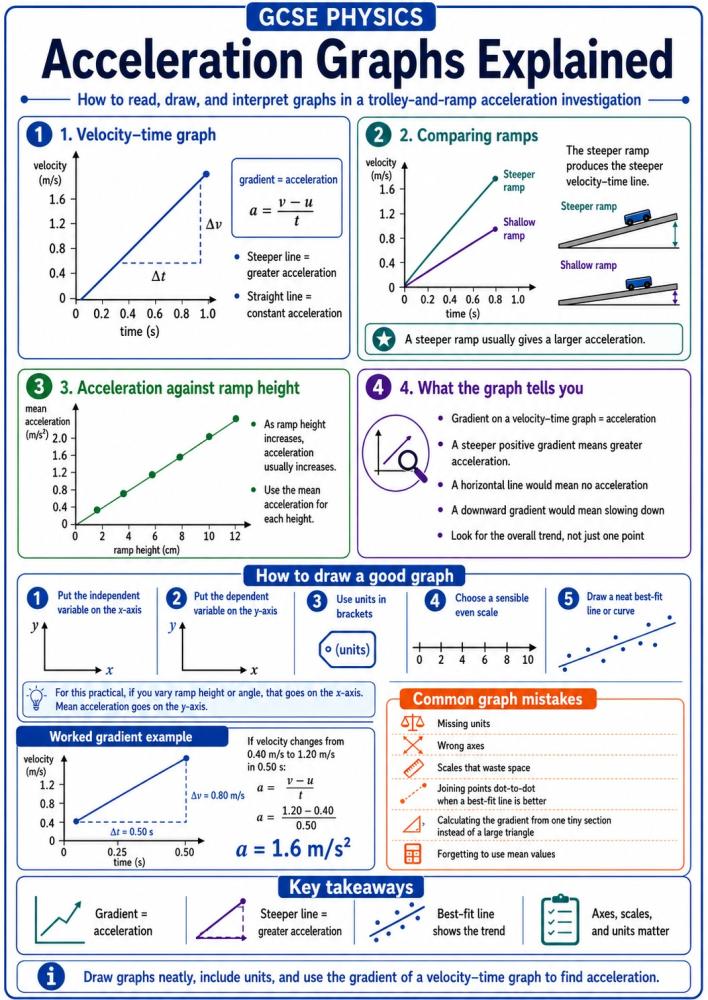

X-axis: ramp height (cm) or ramp angle (°)
Y-axis: mean acceleration (m/s2)
Select sensible scales, include units and use a line or smooth curve of best fit. The gradient of a velocity-time graph represents acceleration.
Under the conditions of the investigation, increasing the ramp height or angle increased the trolley's mean acceleration. The steeper ramp produced a larger component of the trolley's weight down the slope, increasing the resultant force. For the same trolley mass, the larger resultant force produced a larger acceleration.
A good conclusion should refer to the measured trend and controlled conditions. Do not claim that the relationship is perfectly proportional unless the graph supports that claim.
| AT 1 | Measure and record length, mass and time accurately. |
| AT 2 | Measure and observe the effect of force in the trolley-pulley extension. |
| AT 3 | Determine speed and rate of change of speed (acceleration/deceleration). |
GCSE specification link: The ramp route strongly develops acceleration measurement. For full AQA Required Practical 7 coverage, students should also investigate varying force at constant mass and varying mass at constant force using the trolley-pulley extension.
| Problem | Possible cause | Solution |
|---|---|---|
| Trolley does not move at low angle | Driving component is smaller than static/rolling resistance | Increase the angle slightly; clean/check wheels; use a lower-friction track. |
| Trolley leaves the track or moves too fast | Ramp too steep or buffer inadequate | Reduce the angle; centre the trolley; add a secure buffer or catch tray. |
| Logger records no value | Beam not broken, cable loose or wrong mode selected | Check alignment, connections, sampling mode and card length; run a test pass. |
| Speeds are impossible or inconsistent | Card clips the gate or wrong card length entered | Realign the gate, secure the card vertically and remeasure the card length. |
| Repeated accelerations are widely scattered | Inconsistent release or apparatus movement | Use a release gate; mark positions; clamp the ramp; repeat the setting. |
| Acceleration appears smaller on a steeper ramp | Gate moved, angle measured wrongly or one run anomalous | Check controls and raw data before accepting the result. |
| Hanging mass hits the floor | String too long or measurement region too long | Shorten the string, raise the bench pulley safely or move the measurement interval. |
| Force-acceleration graph has a positive force intercept | Friction and pulley resistance must be overcome | Discuss the intercept rather than forcing the line through the origin. |
Quick examiner tip: When results look unusual, check the release point, gate positions and raw speed readings before blaming the physics. Most poor data come from uncontrolled setup changes.
“Acceleration means moving fast.”
Acceleration is a change in velocity per unit time. An object can move fast at constant velocity and have zero acceleration.
“A heavier trolley must accelerate faster down the same ramp.”
In the ideal model, mass cancels. Real differences are more likely to come from friction, wheel condition or the way masses are attached.
“The whole weight of the trolley pulls it down the ramp.”
Only the component of weight parallel to the ramp contributes directly to motion down the slope.
“A negative acceleration always means the object is slowing down.”
The sign depends on the chosen positive direction. A negative acceleration can speed an object up in the negative direction.
“The gradient of a distance-time graph gives acceleration.”
The gradient of a distance-time graph gives speed. The gradient of a velocity-time graph gives acceleration.
“A force is needed to keep an object moving at constant velocity.”
A resultant force is needed to change velocity. Constant velocity occurs when the resultant force is zero.
“The data logger always measures acceleration directly.”
Some systems only measure beam-blocking times or speeds. Students should understand what the instrument records directly and what it calculates.
| Common student mistake | Consequence |
|---|---|
| Pushing the trolley at release | Adds an uncontrolled initial force and makes comparisons invalid. |
| Changing the release point | Changes the speed at gate 1 and prevents a fair comparison. |
| Moving light gates between settings | Changes the measured interval as well as the ramp angle. |
| Entering the wrong card length | Produces a systematic error in every calculated speed. |
| Mixing cm, m, g and kg | Produces acceleration or force values with the wrong magnitude. |
| Plotting acceleration on the x-axis | Reverses the independent and dependent variables. |
| Letting the hanger hit the floor | The driving force changes before the trolley completes the measurement interval. |
| Adding mass without stating total system mass | Makes the force-mass analysis incomplete or incorrect. |
| Joining points dot-to-dot | Hides the overall trend and is not a best-fit representation. |
| Ignoring an anomalous reading | Can distort the mean and weaken the conclusion. |
High-value exam wording: State that the trolley is released without a push, the independent variable is changed in measured steps, control variables are kept constant, each reading is repeated, a mean is calculated and the conclusion is based on the trend in the graph.
Improve reliability by repeating each setting, calculating a mean, reporting the range, using an identical procedure, checking anomalies and comparing results between groups using the same apparatus.
The investigation is valid when ramp height or angle is the only deliberately changed factor. Keep trolley mass, release point, gate positions, card length, ramp surface and data-processing method constant.
Validity warning: Changing ramp angle changes the component of weight along the ramp. It is valid to conclude that angle affects acceleration. Do not describe ramp height itself as a force.
Repeated measurements reveal random variation but do not remove systematic error. A consistent zero error in an inclinometer, an incorrectly measured card length or persistent pulley friction can shift every result in the same direction.
| Random variation | Systematic effects |
|---|---|
| Release differences Wheel vibration Small timing fluctuations Slight changes in card alignment |
Incorrect card length Mis-calibrated angle sensor Constant track friction Logger configuration error |
Rolling resistance, track irregularities and changing wheel friction can make acceleration vary. A value measured between two gates is an average over that interval.
For a ramp of fixed length, height determines angle. The ideal downhill component is mg sin(θ), so acceleration relates more directly to sin(θ) than to angle in degrees.

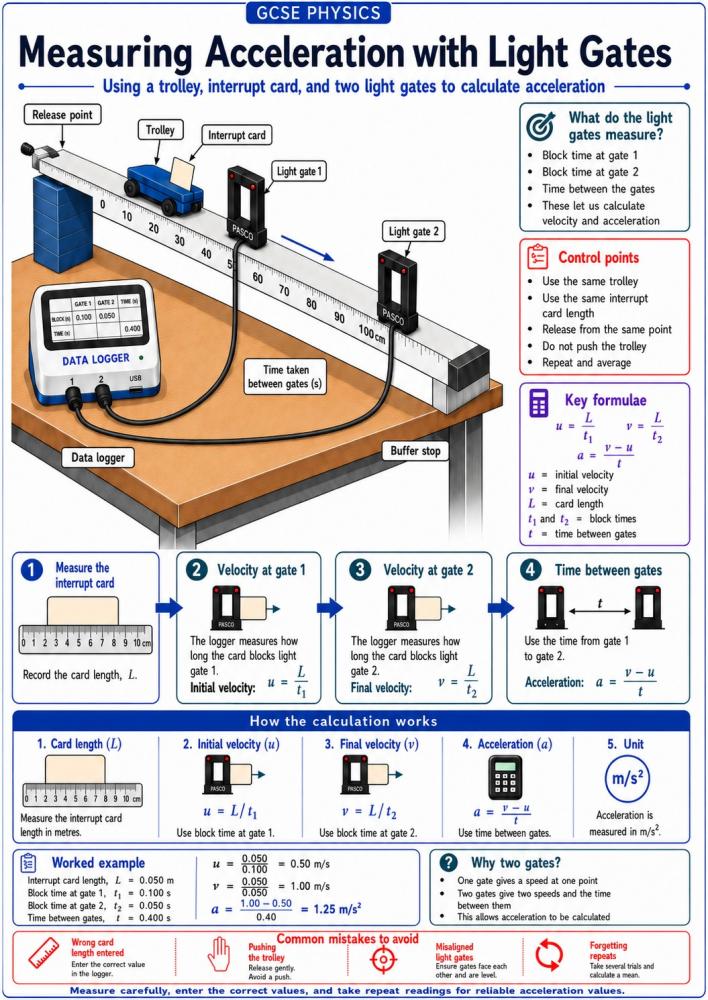

Speed is calculated from card length divided by beam-blocking time. A shorter card gives a more local measurement but may increase the percentage uncertainty in card length.
Means reduce the influence of random variation, but an incorrect card length or mis-calibrated inclinometer shifts every result.
In the trolley-pulley system the accelerating mass includes the trolley, masses on the trolley, hanger and hanging masses.
Friction, pulley rotational inertia and unequal string tensions mean the resultant force on the system is smaller than the simple value mhg.
A best-fit line should represent the data. A force intercept may represent resistance that must be overcome.
State the ideal prediction, identify where the data agree, quantify departures using gradients or intercepts, and explain plausible physical or measurement causes.
Useful higher-tier graph: For a fixed ramp length L, calculate sin(θ) = height / L and plot mean acceleration against sin(θ). In an ideal low-friction model the relationship should be linear. A non-zero intercept or reduced gradient can be discussed in terms of resistance and measurement error.
Grade 8-9: Thinking like a scientist. Scientists define the system, control variables, inspect raw data, quantify uncertainty, repeat measurements, test alternative graphs and distinguish random variation from systematic effects before accepting a relationship.

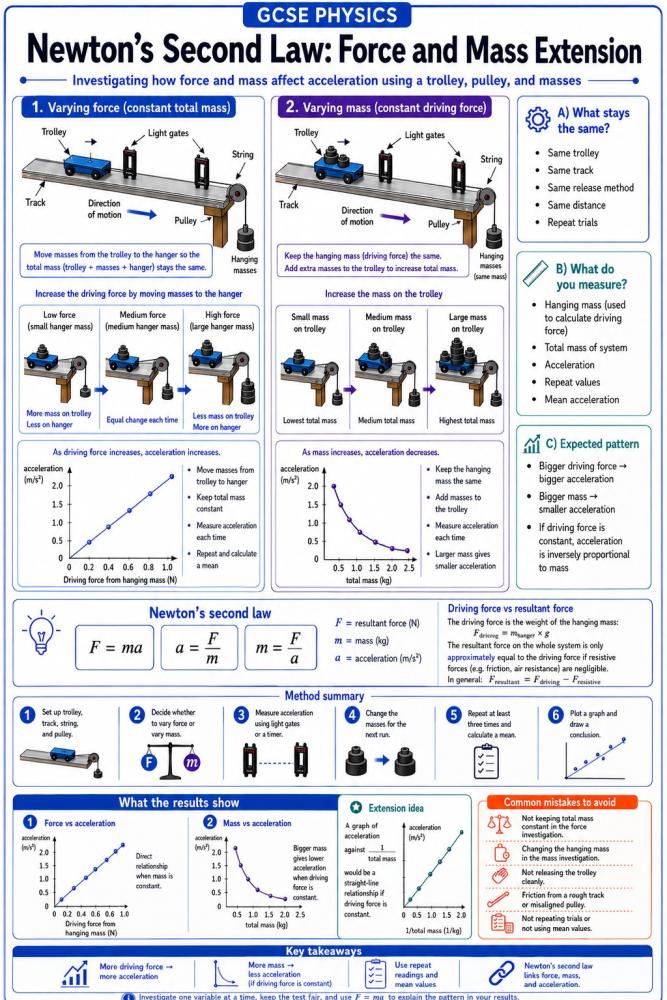

The trolley-pulley extension allows students to investigate how resultant force and total moving mass affect acceleration and gives fuller coverage of F = ma.
Important control: The hanger must not reach the floor and the trolley must not reach the buffer before the acceleration measurement is complete.
Run the practical at the minimum and maximum planned ramp settings. Check that the trolley passes both gates, stops safely and produces acceleration values within the logger range.
Key explanation: Ask students what the logger measures directly and what it calculates. This prevents a displayed acceleration value from being treated as unexplained “magic”.
| Activity | Time |
|---|---|
| Introduction and theory | 10 min |
| Safety briefing and demonstration | 7 min |
| Apparatus setup and test run | 10 min |
| Data collection at five settings | 20 min |
| Calculations and graph start | 8 min |
| Plenary and equipment check-in | 5 min |
| Activity | Time |
|---|---|
| Modify setup and review controls | 10 min |
| Force investigation data collection | 20 min |
| Mass investigation or data-set analysis | 15 min |
| Graphing and evaluation | 15 min |
Overall risk level: Low. This practical presents a low level of risk when standard laboratory procedures are followed. Schools should complete their own risk assessment in accordance with local procedures.
| Hazard | Risk | Control measures |
|---|---|---|
| Moving trolley | Impact with hands, equipment or floor | Use a buffer/catch tray; keep hands and faces clear; use modest ramp angles. |
| Raised ramp | Ramp slips or falls | Use stable blocks or a lab jack; add non-slip matting; clamp where appropriate. |
| Hanging masses | Masses fall onto feet or strike the floor | Use low masses, closed shoes, a short drop, secure slotted masses and keep feet clear. |
| Trailing leads and string | Trip or entanglement hazard | Route leads along the bench; keep aisles clear; use the shortest practical string. |
| Pulley and clamps | Pinch points or unstable fixing | Check clamps before use and keep fingers away from moving pulley parts. |
| Fast trolley | Trolley leaves track or damages gates | Limit ramp angle; centre the trolley; ensure the card clears the gates; supervise test runs. |
| Electrical equipment | Damage from incorrect connections or falling apparatus | Use manufacturer-approved low-voltage interfaces and keep equipment away from bench edges. |
A push adds an uncontrolled force and changes the initial velocity, reducing validity and reliability.
A trolley changes speed from 0.35 m/s to 0.95 m/s in 0.40 s.
a = (0.95 - 0.35) / 0.40 = 1.5 m/s2
They detect beam interruption electronically and remove human reaction time from the timing measurement.
They reveal random variation, help identify anomalies, improve reliability and allow calculation of a mean.
For the effect of ramp angle, plot ramp angle on the x-axis and mean acceleration on the y-axis, including units.
Transfer masses from the trolley to the hanger. The driving weight increases but the same masses remain part of the moving system.
Friction, pulley resistance and other systematic effects mean some force is needed before the system accelerates as predicted.
Suitable answers include trolley mass, release point, gate positions, ramp surface, card length or logger settings.
| Plenary question | Expected answer |
|---|---|
| Why does a steeper ramp usually produce a larger acceleration? | The component of weight down the ramp is larger, so the resultant force is larger. For the same trolley mass, a larger resultant force gives a larger acceleration. |
| Why must the release point stay fixed? | Changing it changes the speed at gate 1 and introduces another variable. |
| What does the gradient of a velocity-time graph represent? | Acceleration. |
| How can force be varied while total moving mass stays constant? | Transfer masses from the trolley to the hanger. |
| Why might a force-acceleration graph not pass through the origin? | Friction and pulley resistance mean some driving force is used to overcome resistance. |
| What is one reason light gates improve accuracy? | They remove human reaction time from the timing measurement. |
They provide velocity measurements at two positions and allow the time between those measurements to be determined.
The logger calculates speed from card length divided by beam-blocking time, so an incorrect length creates a systematic error.
Rolling resistance, wheel condition, track irregularities and measurement uncertainty can all affect the results.
Some driving force is used to overcome friction, pulley resistance and other non-ideal effects.
