An essential guide to help you be better informed when purchasing borosilicate glassware.
Borosilicate glassware is the backbone of school labs, research environments, clinical settings, and industrial QC. While it looks similar across brands, performance varies by composition, wall thickness, annealing quality, joint precision, and compliance standards.
This guide breaks down everything you should know before purchasing.
A downloadable PDF version of this guide, with more visual references, can be opened by clicking the buying guide image.
Borosilicate Glassware Introduction
Borosilicate glass is a silicate glass that contains significant amounts of boron trioxide (B₂O₃).
This boron component reduces the glass’s thermal expansion, making it far more resistant to cracking when heated or cooled quickly.
A typical composition is roughly 70–80% silica (SiO₂), 7–13% boron oxide (B₂O₃), and small amounts of sodium oxide, aluminium oxide and other components.
The most common laboratory grade is Borosilicate 3.3, meaning it has a very low thermal expansion coefficient of 3.3 × 10−⁶ /K.
How it works:
Boron atoms enter the silica network, create more flexible bonds and open up the structure.
This reduces thermal expansion and increases resistance to thermal shock.
1. Identify Your Primary Use Case
Start with where and how the glassware will be used. This determines wall thickness, joint type, and durability.
✓School / teaching labs
Robust, thick-wall items, beaded rims on beakers, clear easy-read graduations, economical sets and high break resistance.
✓Research / professional labs
Borosilicate 3.3, tight tolerances, Class A volumetrics, standard ground joints and autoclavable caps or stoppers.
✓Clinical / diagnostics
Reliable Class A volumetric accuracy, colourfast markings and resistance to frequent cleaning or sterilisation.
✓Industrial / quality testing
Heavy-duty ware, interchangeable joints, compatibility with heating and cooling cycles, and clear part coding for SOP traceability.
2. Why Borosilicate 3.3?
The industry workhorse is borosilicate 3.3, valued for its thermal, chemical and dimensional performance.
Low thermal expansion
Excellent thermal shock resistance, helping beakers, flasks and test tubes withstand rapid temperature changes when heated correctly.
Chemical durability
Highly resistant to acids, organic solvents, salts and autoclave sterilisation.
Clarity & hardness
Stays clear after repeated use and is fairly scratch resistant compared to other glasses.
Dimensional stability
Ideal for precise volumetric items because it does not warp during normal laboratory use.
Note: Borosilicate 3.3 is not resistant to hydrofluoric acid (HF) or hot, concentrated alkalis.
3. Standards & Compliance
For consistent quality, look for references to recognised standards in datasheets or on the glassware itself.

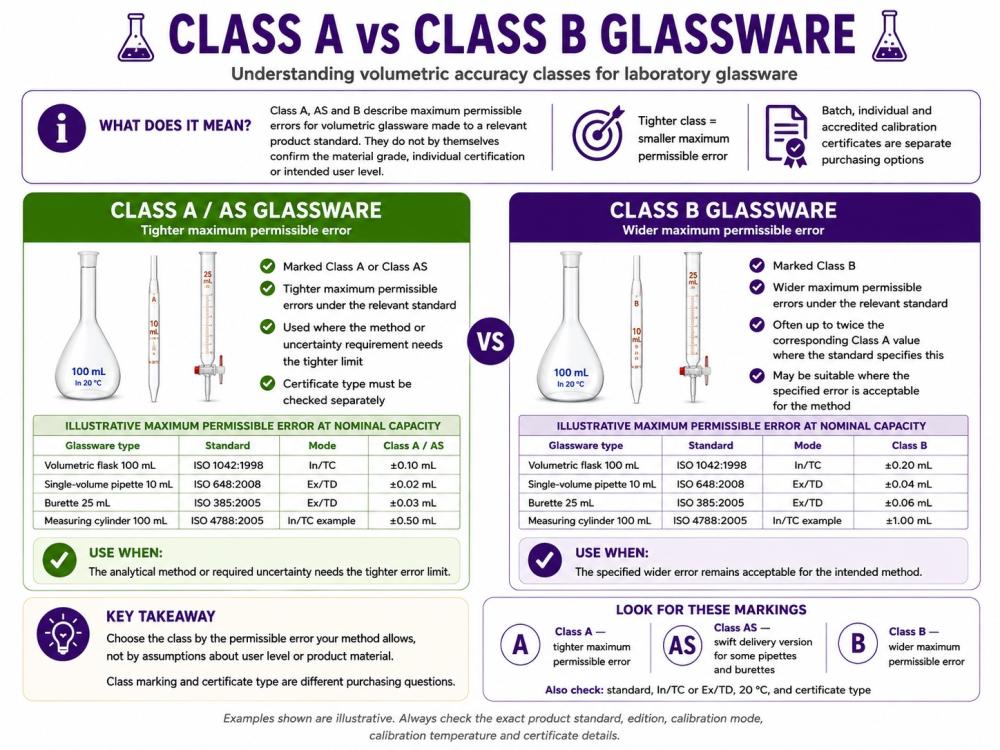

Volumetric accuracy
Class A: highest accuracy, individually calibrated and often supplied with a certificate.
Class B: teaching or general use, with wider tolerance.
Common standards cited
ISO series for volumetrics, such as ISO 1042, ISO 385, ISO 4788 and ISO 835.
ASTM/USP references for certain lab items.
Standard taper joints, cones, sockets and adapters per ISO/ASTM dimensions.
Ask suppliers for tolerance tables, calibration method at 20 °C, and whether Class A items include certificates or batch numbers.

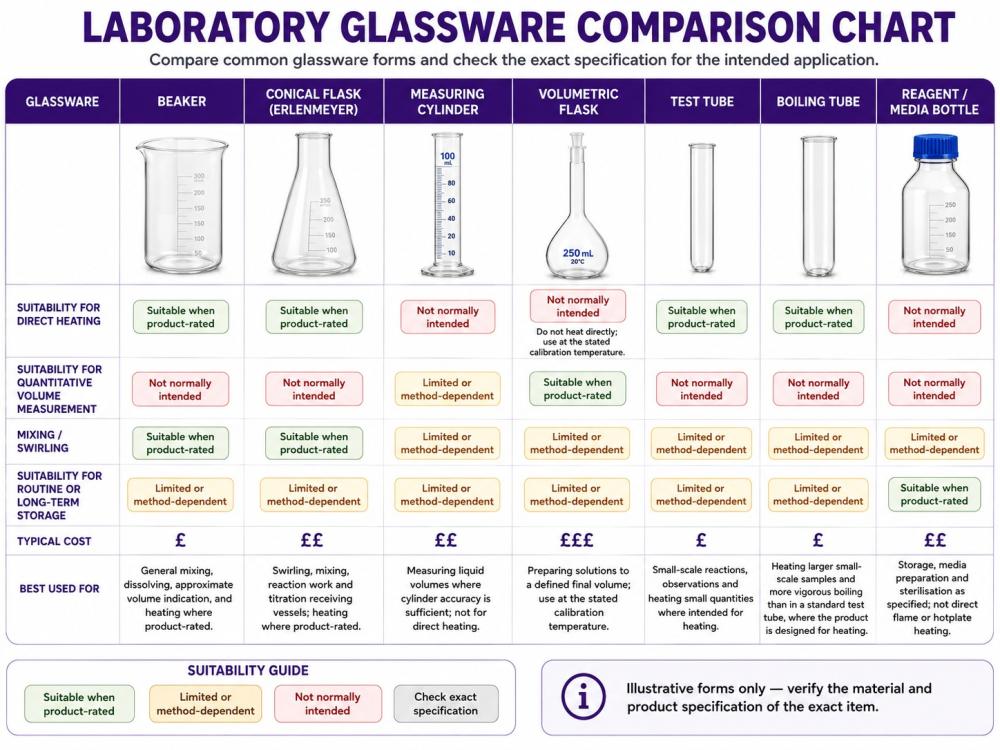

4. Form Factors & When to Choose Each
Beakers
Griffin or low form for general heating and mixing; Berzelius or tall form for better splash control. Beaded rims add chip resistance, and spouts should pour cleanly without dribble.
Flasks
Erlenmeyer or conical flasks for swirling and titrations; volumetric Class A flasks for precise dilutions; round-bottom flasks for even heating under mantles. Narrow necks minimise evaporation, while wide necks ease transfers and cleaning.
Cylinders
Class A cylinders are useful for prep and standard solutions. A hex base improves stability, and ring guards are useful in teaching labs.
Bottles & Media Storage
GL threaded bottles, such as GL45, with PTFE-lined caps support solvent resistance. Pouring rings reduce drips, and amber low-actinic glass protects light-sensitive reagents.

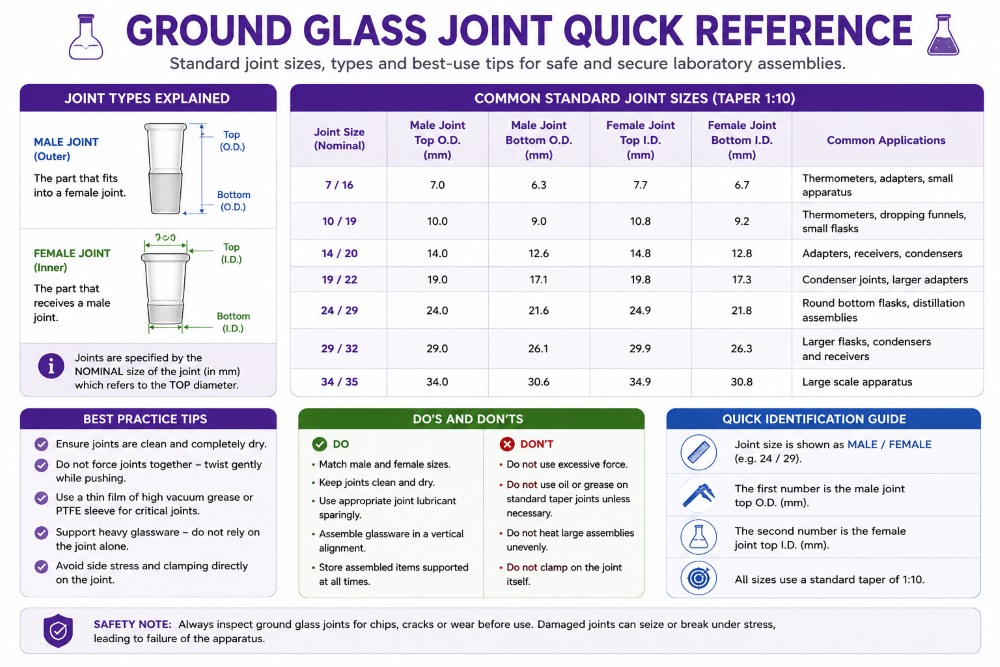

Joints, Adapters & Assemblies
Standard taper ground glass joints, such as 24/29, provide interchangeability. Keck clips or PTFE joint clamps secure setups, while PTFE stopcocks provide chemical resistance.
5. Wall Thickness, Annealing & Durability
Uniform wall thickness
Prevents stress points and thermal fractures.
Proper annealing
Stress relief during manufacturing extends service life. Quality brands usually state this.
Reinforced features
Beaded rims and heavy bases reduce chipping and tipping.
Thick-wall items
Beakers, boiling flasks and similar pieces are better for teaching and rough handling.
Rule of thumb: For frequent flame or heating use, prioritise heavy-duty, well-annealed pieces with uniform walls.
6. Markings, Graduations & Readability
Look for
Fired-on ceramic or diffusion-etched markings that last longer than ink that rubs off.
High-contrast white or amber graduations to suit different liquid colours.
Volume scale type: To contain (TC) versus to deliver (TD), especially for pipettes and burettes.
Crisp, evenly spaced meniscus reference lines and numbering.
7. Caps, Stoppers & Closures
Match closure materials to your chemicals and sterilisation methods.
Glass stoppers
Ground for inert storage; avoid where seizure is likely because drying out can freeze joints.
PTFE stoppers/caps
For aggressive solvents; PP or PBT for general use; ETFE for high chemical and thermal resistance.
Septum caps
PTFE/silicone caps for sampling without opening.
Autoclavable closures
Useful when sterilising media bottles and flasks.

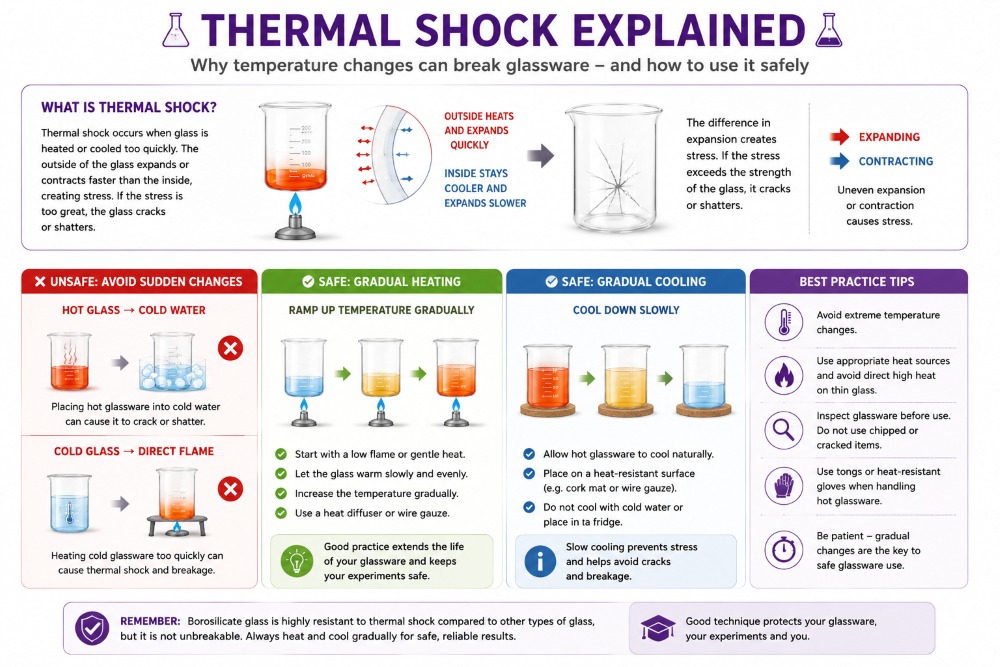

8. Heating, Cooling & Thermal Shock Practices
Heating
Heat gradually and use wire gauze or ceramic pads between flame and glass.
Thermal shock
Do not place hot glass on cold surfaces or into cold liquids, and avoid the reverse.
Vacuum or pressure
Use glass specifically rated for the intended differential and avoid flawed pieces with scratches or cracks.
Frequent high temperatures
For frequent work above 200 °C or with open flames, consider heavy-wall and round-bottom flasks with proper support such as mantles, clamps and rings.
9. Cleaning, Sterilisation & Chemical Compatibility
General cleaning: lab detergent, warm water and soft brushes, followed by rinsing with DI water.
Use solvent rinses for organics; chromic acid is largely discouraged, so use safer oxidisers if needed.
Most borosilicate is autoclavable. Loosen caps and avoid over-tightening after cycles.
Avoid hydrofluoric acid (HF) and hot, concentrated alkalis, which attack the glass network. Use PTFE vessels instead.
10. Sustainability & Lifecycle
Choose replaceable parts such as caps, rings and stopcocks.
Spare components such as Keck clips, joints and stoppers extend assembly life.
Repair services such as re-grinding joints or replacing stopcocks can be cost effective for high-value items.
Segregate broken glass bins and keep them separate from sharps or biohazard waste.
11. Popular Brand Comparison
The comparison below is based on a 250 ml beaker. The price index is intended as a rough guide only and can be checked online. Typical thickness data references ASE measurements for Eisco LabGlass, while other data is taken from manufacturer information.
ASE concluded that LabGlass glassware appears to be of as consistent thickness or better than that commonly found in schools and should in principle be at least as robust, assuming the tested sample was typical.
Brand
Material
Typical Thickness (mm)
Strain Point
Annealing Point
Softening Point
Conforms To
Price Index
Academy
Boro 3.3
1.86 1.90 1.82 1.83
510°C
560°C
825°C
ISO 3819; ISO 3585; ISO 719 / 720; ISO 4796
54.6
Labglass
Boro 3.3
2.45 2.34 2.23 2.53
515°C
565°C
820°C
I.S.O. 3819; ASTM E960; DIN 12231
100
Simax
Boro 3.3
1.77 1.94 1.80 1.96
510°C
560°C
825°C
ISO 3819; ISO 3585; ISO 719 / 720; ISO 4796; DIN 12331; ASTM E438 (Type I, Class A)
106.5
Pyrex
Boro 3.3
1.59 1.92 1.90 1.88
510°C
560°C
825°C
ISO 3819; ISO 3585; ISO 719 / 720; ISO 4796; DIN 12331; ASTM E438 (Type I, Class A)
536.1
12. Borosilicate Glassware Buying Checklist
Before purchasing, make sure you confirm:
1Material verification
Confirm the glass is true borosilicate, such as 3.3 grade.
Check that the manufacturer clearly states the glass composition.
Avoid soda-lime glass or mixed formulations where borosilicate is required.
2Standards & compliance
Manufactured to recognised standards such as ISO, DIN or ASTM.
Volumetric glassware marked Class A or Class B where applicable.
Calibration markings compliant with the stated standard.
Certificates available for Class A items if required.
3Build quality & finish
Uniform wall thickness.
No visible cracks, chips, bubbles, inclusions or scratches.
Smooth, well-finished rims and edges.
Flat, stable base.
Reinforced rims or heavy-duty variants available if needed.
4Accuracy & graduation
Clear, legible graduations.
Graduations etched or chemically resistant, not painted only.
Tolerance values stated.
Marked TC or TD as appropriate.
5Thermal performance
Suitable for hotplate or Bunsen burner heating if required.
Maximum operating temperature specified.
Good thermal shock resistance.
Suitable for autoclaving if required.
6Chemical resistance
Resistant to the acids, alkalis and solvents used.
Suitable for long-term chemical contact if applicable.
Compatible with cleaning agents and detergents.
Caps, stoppers or seals are chemically resistant.
7Design & practical use
Pouring spouts function cleanly without dribbling.
Neck size is appropriate for filling and cleaning.
Frosted or labelled writing area present.
Compatible with standard lids, caps or stoppers.
8Joints & fittings
Standard ground glass joint sizes clearly marked, such as 24/29.
Joints smooth, consistent and well matched.
No chips, grinding defects or poor fit.
Compatible with existing laboratory glassware.
Replacement stoppers or adapters available.
9Cleaning & maintenance
Dishwasher safe according to manufacturer guidance.
No difficult-to-clean dead spaces.
Resistant to staining and clouding.
Replacement consumables available, such as caps and stoppers.
10Safety & durability
Stable when empty and filled.
Suitable for routine laboratory handling.
Heavy-duty options available for teaching or high-use labs.
Supplier breakage or DOA replacement policy.
11Supplier & cost considerations
Reputable supplier with consistent quality.
Batch consistency assured.
Bulk purchase options available.
Cost appropriate for accuracy class and durability.
