Electrochemical Cells and Cell Potentials

Better Equipped Practical Teaching Guides

A Level Chemistry Practical: Electrochemical Cells and Cell Potentials

An enhanced A Level Chemistry practical guide to constructing electrochemical cells, measuring signed cell potentials, interpreting polarity and electron flow, calculating standard cell potentials, writing cell notation, troubleshooting results and evaluating uncertainty.

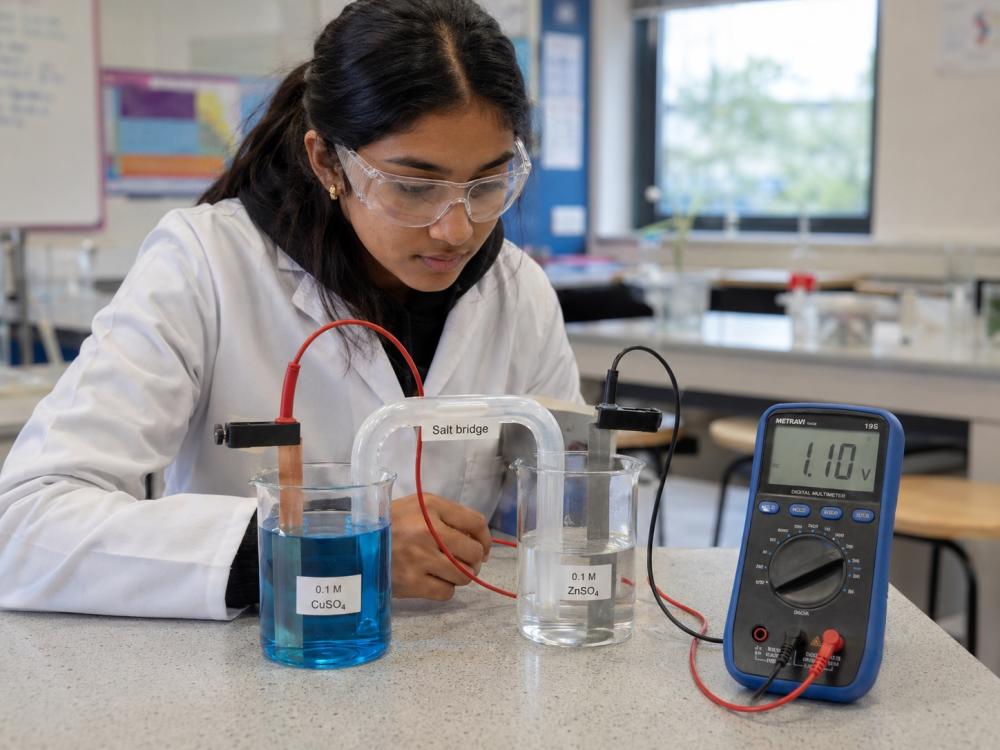

A Level Chemistry student measuring the potential of a zinc-copper electrochemical cell

Teacher note: This resource is a practical support guide to accompany laboratory equipment. Teachers should adapt procedures and risk assessments to suit curriculum requirements, examination-board specifications and local laboratory policies.

Level
A Level Chemistry
Lesson time
60-75 minutes
Risk level
Low to moderate
Core cell
Zn/Zn2+ and Cu2+/Cu
Core skills
Redox, EMF and cell notation
01
Practical overview
02
Background theory
03
Apparatus and setup
04
Method
05
Results and calculations
06
Interpreting results
07
Troubleshooting
08
Evaluation and extension
09
Risk assessment
10
Exam support

Practical overview

Students construct a zinc-copper electrochemical cell from two half-cells. A zinc electrode is placed in zinc sulfate solution and a copper electrode is placed in copper(II) sulfate solution. The solutions are connected by an inert salt bridge and the electrodes are connected to a high-resistance digital voltmeter.

Students record the signed cell potential, identify the direction of electron flow, compare the experimental result with a value calculated from standard electrode potentials, write the associated half-equations and conventional cell notation, and evaluate why an experimental value may differ from a tabulated standard value.

The core method can be extended by comparing several metal/metal-ion half-cells, using an inert electrode with an ion/ion redox couple, or investigating how ion concentration affects cell potential.

Why this practical matters

  • Links particle-level redox chemistry to a measurable electrical quantity.
  • Moves students beyond memorising an electrochemical series by connecting electrode potential, polarity and redox direction.
  • Develops practical understanding of anodes, cathodes, electron flow and ion migration.
  • Supports interpretation of batteries, fuel cells, corrosion, electrochemical sensors and industrial redox processes.

Learning objectives

  • Construct two half-cells and connect them correctly using a salt bridge and voltmeter.
  • Prepare electrode surfaces consistently and avoid cross-contamination.
  • Measure and record a signed cell potential with unit, temperature, concentrations and lead connections.
  • Identify the anode, cathode, positive electrode, negative electrode and direction of electron flow.
  • Explain the purpose of the salt bridge and movement of ions within it.
  • Write half-equations, an overall redox equation and conventional cell notation.
  • Calculate E°cell from tabulated standard reduction potentials.
  • Distinguish measured Ecell from standard E°cell.
  • Evaluate uncertainty, systematic effects and limitations of thermodynamic predictions.

Background theory

What is a half-cell?

A half-cell contains a redox couple in contact with an electron conductor. In a common metal/metal-ion half-cell, a metal electrode is immersed in a solution containing ions of that metal. Oxidation and reduction can occur in opposite directions at the metal-solution interface, producing an interfacial potential difference.

An isolated electrode potential cannot be measured absolutely. Only the potential difference between two half-cells can be measured, so individual standard electrode potentials are defined relative to a reference electrode.

Anode

Oxidation occurs. Electrons are released into the external circuit. In a spontaneous Zn/Cu cell, zinc is the negative anode.

Cathode

Reduction occurs. Electrons arrive from the external circuit and are accepted by the oxidising species. In a spontaneous Zn/Cu cell, copper is the positive cathode.

Salt bridge

Ions move through the bridge to complete the ionic circuit and prevent rapid charge build-up in either half-cell. Electrons travel through the external wire, not through the salt bridge.

Memory aid: AN OX, RED CAT - oxidation at the ANode; REDuction at the CAThode.

Zinc-copper equations

Anode: Zn(s) → Zn2+(aq) + 2e-

Cathode: Cu2+(aq) + 2e- → Cu(s)

Overall: Zn(s) + Cu2+(aq) → Zn2+(aq) + Cu(s)

Electron flow: zinc electrode → copper electrode.

Calculating E°cell

cell = E°cathode - E°anode

Zn2+/Zn: E° = -0.76 V
Cu2+/Cu: E° = +0.34 V

cell = +0.34 - (-0.76) = +1.10 V

Standard hydrogen electrode and standard conditions

The standard hydrogen electrode is assigned E° = 0.00 V and provides the reference against which standard electrode potentials are defined.

At A Level, standard conditions are normally treated as 298 K, gases at 100 kPa and aqueous ions at 1.00 mol dm-3. More strictly, standard electrode potentials refer to species at unit activity.

How to read an electrode-potential table

Electrode-potential tables are written as reduction equilibria. The more positive E° value represents the greater thermodynamic tendency for the oxidised form to gain electrons and undergo reduction.

For a spontaneous standard cell, the half-reaction with the more positive E° remains as reduction at the cathode; the other half-reaction is reversed to give oxidation at the anode.

Conventional cell notation

Zn(s) | Zn2+(aq) || Cu2+(aq) | Cu(s)

  • A single vertical line shows a phase boundary.
  • A double vertical line represents the salt bridge or liquid junction.
  • For a spontaneous cell written conventionally, oxidation is on the left and reduction is on the right.
  • Species in the same phase are separated by commas.
  • An inert electrode such as Pt(s) or C(s) is included when no conducting solid is part of the redox couple.

Important limitation: a positive E°cell indicates thermodynamic feasibility under standard conditions. It does not guarantee that the reaction will be rapid; activation energy, passivation and other kinetic effects may prevent an observable reaction.

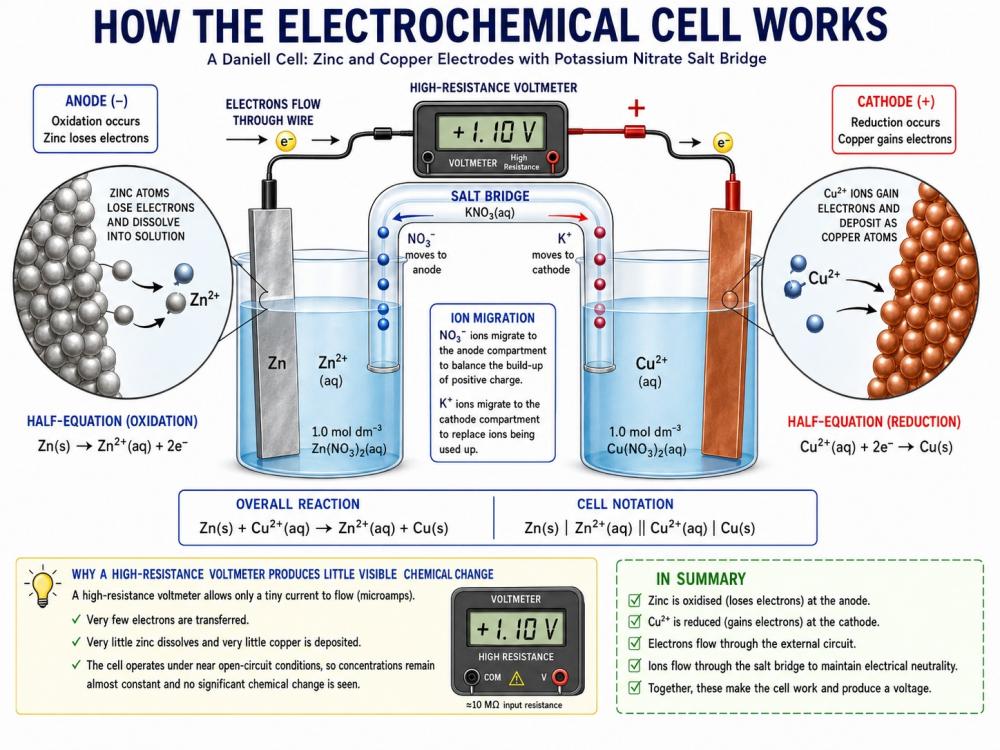

Particle-level diagram showing oxidation at zinc, reduction at copper, electron flow and ion movement through a salt bridge

Apparatus and setup

Core zinc-copper cell: equipment per group

Item Suggested specification / quantity Purpose or note
Digital voltmeter High input resistance; 0-2 V or auto-range; preferably 0.001 V resolution Measures the cell potential under near-open-circuit conditions while drawing very little current.
Connecting leads Two, with insulated crocodile clips Connect each electrode to the meter; keep clips above solution level.
Beakers 2 x 50 cm3 or 100 cm3 One for each half-cell.
Measuring cylinder or pipettes Suitable for measuring or transferring 25.0 cm3 portions Transfers equal solution volumes.
Zinc strip One clean strip, approximately 10-15 mm wide Zinc electrode.
Copper strip One clean strip, approximately 10-15 mm wide Copper electrode.
Abrasive paper Fine emery paper or sandpaper Removes oxide and contamination immediately before use.
Filter-paper salt bridge Approximately 12 cm x 1-2 cm Soak thoroughly in an inert electrolyte.
Thermometer Resolution 0.5-1 °C Records solution temperature.
Deionised water and tissues Small wash bottle and lint-free tissue Rinses and blots electrodes after cleaning.
Waste container Labelled for metal-ion solutions Prevents inappropriate sink disposal.

Core solutions used in this guide

  • 25 cm3 zinc sulfate, ZnSO4(aq), 0.40 mol dm-3.
  • 25 cm3 copper(II) sulfate, CuSO4(aq), 0.40 mol dm-3.
  • Saturated potassium nitrate, KNO3(aq), sufficient to wet the salt bridge.

Note: 0.40 mol dm-3 is a robust classroom concentration, but it is not the 1.00 mol dm-3 concentration commonly used in the examination-board treatment of standard conditions.

Optional extension materials

  • Iron strip and iron(II) sulfate solution for Fe2+/Fe.
  • Silver strip and 0.10 mol dm-3 silver nitrate for Ag+/Ag, only where specifically risk assessed.
  • Graphite or platinum electrode with a solution containing both Fe3+ and Fe2+ for an ion/ion half-cell.
  • U-tube or agar gel salt bridge where greater mechanical stability is required.
  • Millivolt data logger for concentration investigations.

Compatibility warning: do not use a chloride-containing salt bridge with Ag+(aq), because chloride ions form insoluble AgCl and change the half-cell composition. The bridge electrolyte must not react significantly with the electrode materials or half-cell solutions.

Correct zinc-copper arrangement

Component Correct position or connection Why it matters
Zinc half-cell Zinc strip immersed in ZnSO4(aq) Matches the Zn2+/Zn redox couple.
Copper half-cell Copper strip immersed in CuSO4(aq) Matches the Cu2+/Cu redox couple.
Salt bridge Both wet ends immersed; central section bridges the beaker rims Completes the ionic circuit without directly mixing the bulk solutions.
Black meter lead Connected to zinc for the expected spontaneous direction Zinc is the lower-potential, negative electrode.
Red meter lead Connected to copper The meter should show a positive value close to 1.1 V under suitable conditions.
Crocodile clips Attached to clean, dry metal above the liquid Avoids contamination and corrosion of the clips.
Electrode immersion Similar depth in each solution Improves reproducibility and stabilisation; open-circuit EMF is not set by electrode area.

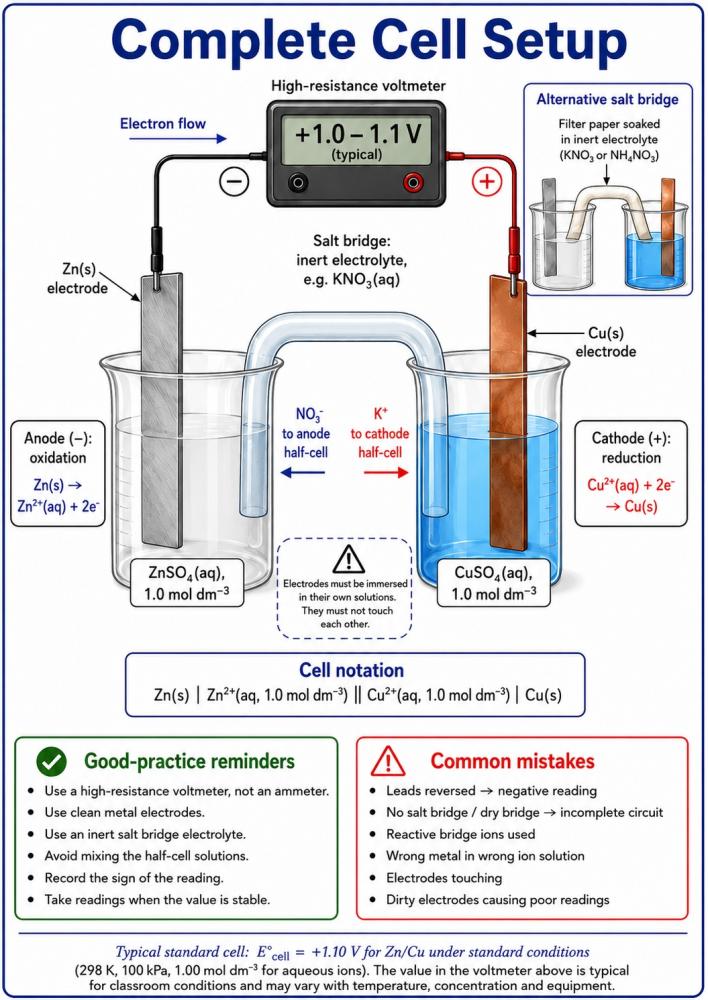

Complete zinc-copper electrochemical cell setup with salt bridge, voltmeter and lead polarity

Method

Prepare the half-cells

  1. Prepare the bench. Put on eye protection, keep food, drinks and ignition sources away, and position the labelled metal-ion waste container within easy reach.
  2. Label the half-cells. Label one beaker Zn2+/Zn and the other Cu2+/Cu.
  3. Measure the solutions. Transfer 25.0 cm3 zinc sulfate to the zinc beaker and 25.0 cm3 copper(II) sulfate to the copper beaker. Record the stated concentrations.
  4. Measure the temperature. Record the solution temperature and allow both half-cells to reach approximately the same laboratory temperature.
  5. Prepare the electrodes. Polish the immersed section of each metal strip until uniformly bright. Rinse with deionised water, blot dry and avoid touching the cleaned area.
  6. Insert each metal into its matching solution. Use a similar immersion depth in both beakers and keep the upper end clean and dry for the crocodile clip.
  7. Prepare the salt bridge. Fully soak a fresh filter-paper strip in saturated potassium nitrate and drape it between the beakers so one end is well immersed in each solution.

Connect, measure and repeat

  1. Set the meter. Select DC voltage on an appropriate range; 0-2 V or auto-ranging is suitable for the Zn/Cu cell.
  2. Connect zinc to the black lead. Attach the crocodile clip above solution level.
  3. Connect copper to the red lead. The display should be positive if the cell and meter are connected as expected.
  4. Allow the reading to stabilise. Do not hold the electrodes or move the bridge. Record the voltage at 10 s intervals until two consecutive readings differ by no more than the chosen stability criterion; for example 0.002-0.005 V with a millivolt meter.
  5. Record the complete result. Include sign, value, unit, temperature, concentrations, lead connections and cell notation.
  6. Repeat independently. Disconnect the apparatus, expose a freshly cleaned electrode surface, use a fresh bridge and reconstruct the cell. Complete at least three independent trials where time permits.
  7. Test other half-cell pairs if required. Use fresh bridge material and dedicated or thoroughly rinsed apparatus. Record the red-lead electrode so negative results can be interpreted rather than discarded.
  8. Finish safely. Disconnect the meter, place solutions and contaminated bridge material in the designated waste stream, rinse reusable electrodes as directed and wash hands.

Do not simply "make the number positive". A digital voltmeter displays V(red) - V(black). A negative reading usually means the red lead is connected to the lower-potential electrode. Record the sign and connections before changing the leads.

How the electrochemical cell works at particle level

At the zinc electrode

Zinc atoms lose electrons and enter solution as hydrated Zn2+ ions:

Zn(s) → Zn2+(aq) + 2e-

At the copper electrode

Hydrated Cu2+ ions gain electrons and become copper atoms:

Cu2+(aq) + 2e- → Cu(s)

Inside the salt bridge

Anions migrate towards the zinc compartment as oxidation increases positive charge there. Cations migrate towards the copper compartment as Cu2+ is removed by reduction. This helps maintain approximate electrical neutrality.

Why visible changes may be small: a high-resistance voltmeter draws only a tiny current, so very little zinc dissolves or copper is deposited. A low-resistance load would permit more current and introduce stronger effects from internal resistance, polarisation and changing concentrations.

Results and cell-potential calculations

Core zinc-copper cell

Trial ZnSO4 / mol dm-3 CuSO4 / mol dm-3 Temp. / °C Red lead Black lead Stable Ecell / V
1
2
3
Mean
Range

Reading stability record

Trial E at 10 s / V E at 20 s / V E at 30 s / V E at 40 s / V Chosen stable value / V
1
2
3

Multiple half-cell comparison

Cell notation Red lead electrode Black lead electrode Signed Ecell / V Anode Cathode Electron direction




Recording standard: record the sign and unit every time. A bare number such as "1.08" is incomplete. A result such as "+1.08 V, red lead on Cu, black lead on Zn, 21.0 °C" is interpretable.

A. Calculate a mean

For +1.08 V, +1.09 V and +1.08 V:

Mean Ecell = (1.08 + 1.09 + 1.08) / 3 = 1.083... V ≈ +1.08 V to the resolution of a 0.01 V meter.

B. Calculate E°cell

Cu2+/Cu = +0.34 V
Zn2+/Zn = -0.76 V

cell = +0.34 - (-0.76) = +1.10 V

C. Rearrange the equation

For Zn(s) | Zn2+(aq) || Cu2+(aq) | Cu(s):

cell = E°right - E°left

+1.10 = +0.34 - E°(Zn2+/Zn), giving E°(Zn2+/Zn) = -0.76 V.

D. Compare experiment with theory

Measured mean = +1.08 V; theoretical standard value = +1.10 V.

Absolute difference = |1.08 - 1.10| = 0.02 V

Percentage difference = (0.02 / 1.10) x 100 = 1.8%

Reporting uncertainty

Meter resolution is the smallest displayed increment; it is not automatically the total measurement uncertainty. Use the manufacturer's accuracy specification where available, report the spread of independent repeats and discuss systematic effects separately.

Precision warning: only use the degree symbol when values genuinely refer to standard conditions. A potential derived from non-standard classroom measurements is an experimental or apparent potential, not automatically a standard electrode potential.

Exam rule: do not multiply an electrode potential by a stoichiometric coefficient. E° is an intensive potential. Balance electrons in the half-equations, but use the tabulated E° values unchanged.

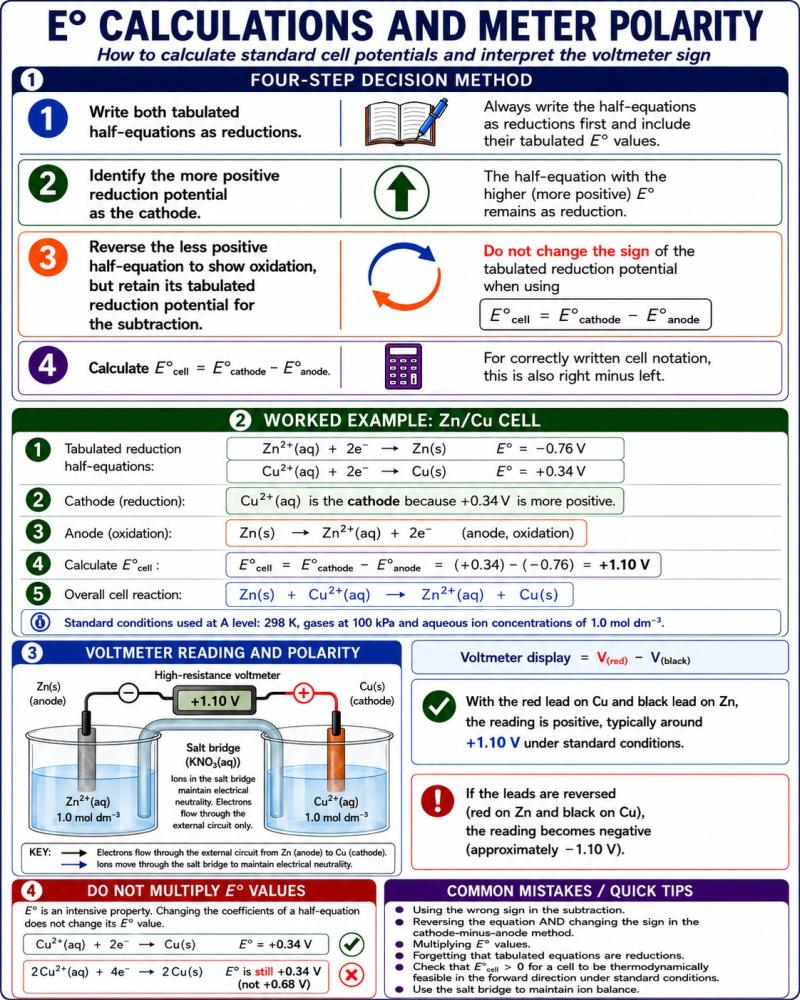

E° calculations and meter polarity

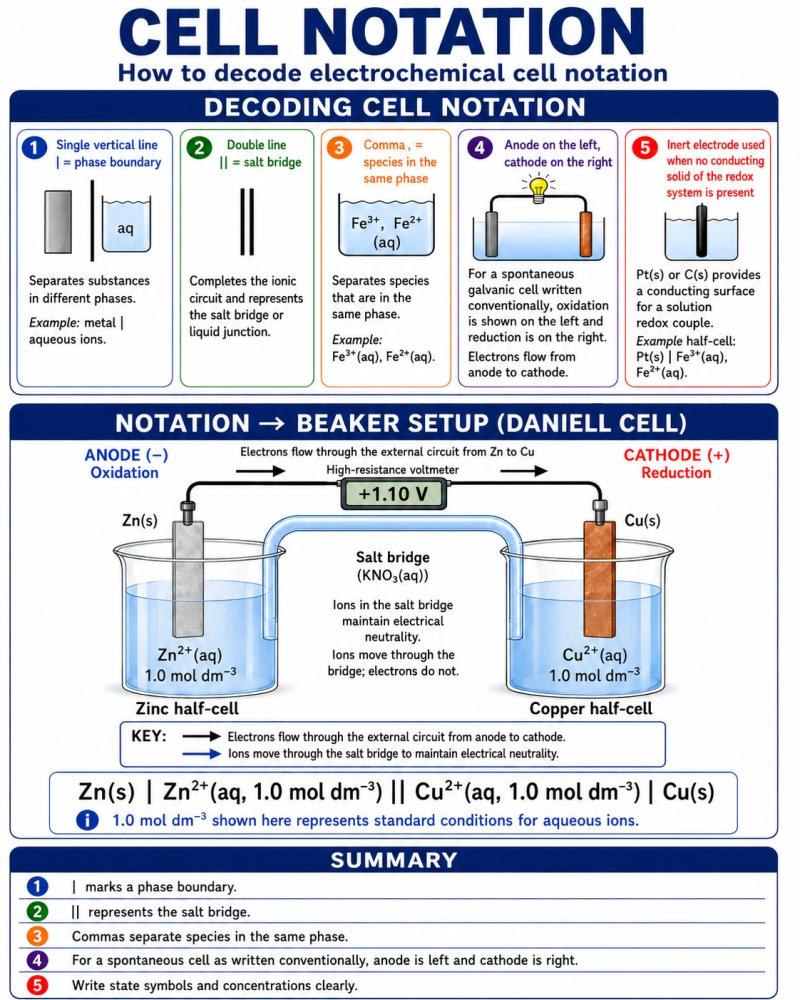

Electrochemical cell notation guide showing phase boundaries, salt bridge, electrode order and inert electrodes

Interpreting results

Observation Interpretation
Positive reading with red lead on Cu and black lead on Zn Copper is at the higher potential and acts as the positive cathode; zinc acts as the negative anode.
Negative reading with red lead on Zn and black lead on Cu The same cell can be operating, but the meter leads are reversed relative to the expected polarity.
Stable value close to +1.10 V for Zn/Cu Broadly consistent with the predicted redox direction and standard-potential difference, subject to actual conditions.
Value lower than expected Possible non-standard concentrations, oxide films, a poorly wetted or nearly broken ionic connection, liquid-junction potential, contamination, meter loading, temperature difference or side reactions.
Value changes continuously Surface reactions, changing contact, a drying bridge, solution mixing, polarisation or unstable redox composition may be occurring.
Near-zero reading Possible open circuit, dry bridge, poor lead contact, identical half-cells, depleted meter battery or incorrect meter setting.
Unexpected precipitate The bridge electrolyte or transferred contamination has reacted with a half-cell species; the result is invalid.

Identifying electrodes from E° data

  • The more positive reduction potential is the cathode in the spontaneous cell.
  • The less positive or more negative half-reaction is reversed to provide oxidation at the anode.
  • Write the anode on the left and cathode on the right in conventional cell notation.
  • Check that E°right - E°left is positive for the spontaneous reaction as written.

What the result does not prove

A measured value close to a tabulated result supports the proposed cell reaction, but it does not prove that all species are at standard activity, that the bridge contributes no junction potential, or that the electrode surfaces are ideal. The practical measures the potential difference of the complete cell, not the absolute potential of a single electrode.

Expected observations

Observation What students should see Interpretation
Zinc-copper voltage A positive reading commonly near 1.0-1.1 V under suitable classroom conditions with red on Cu and black on Zn. Correct polarity and a working ionic/electronic circuit.
Copper solution Blue solution remains visibly blue during a short high-resistance measurement. Very little Cu2+ is consumed because current is tiny.
Zinc solution Usually colourless with no obvious visual change. Zn2+ is colourless and only a tiny amount forms during open-circuit measurement.
Electrode mass No obvious mass change in a brief measurement. The high-resistance meter minimises current and chemical conversion.
Salt bridge Wet throughout with both ends immersed. The ionic circuit is complete.
Gas formation None expected in the intended Zn/Cu cell. Gas suggests contamination, an unintended reaction or severe non-standard conditions.

Example analysis

The following data are illustrative and should not be presented as guaranteed experimental outcomes.

Trial Temperature / °C Stable Ecell / V
1 20.5 +1.08
2 20.6 +1.09
3 20.5 +1.08

Processing

  • Mean = +1.08 V to 0.01 V.
  • Range = 0.01 V.
  • Theoretical E°cell = +1.10 V.
  • Absolute difference = 0.02 V.
  • Percentage difference = 1.8%.

Chemical interpretation

  • Positive sign with red on copper shows copper is the positive electrode.
  • Zinc is oxidised and Cu2+ is reduced.
  • Electrons flow from zinc to copper.
  • Cell notation: Zn(s) | Zn2+(aq) || Cu2+(aq) | Cu(s).

Evaluation: the result is close to the theoretical standard value, but the core solutions are 0.40 mol dm-3 rather than 1.00 mol dm-3. Because the zinc-ion and copper-ion concentrations are nominally equal, the ideal concentration ratio is close to 1, but activities, temperature, surface condition and junction effects remain. Describe the result as consistent with theory, not as a direct measurement of two perfect standard half-cells.

Troubleshooting guide

Problem Likely cause Corrective action
No reading Open lead, dead meter, wrong mode, dry bridge or no contact Check the meter on a known source; inspect leads; re-wet or replace the bridge.
Negative reading Red and black leads reversed relative to expected polarity Record the connections and sign; use the result to identify the higher-potential electrode.
Reading is much too low Dirty electrode, nearly dry or poorly contacting bridge, incorrect concentration, unintended short circuit, unsuitable meter input resistance or side reaction Re-clean surfaces, replace the bridge, verify concentrations and rebuild the cell.
Reading drifts Bridge drying, solutions mixing, unstable surface, temperature change or polarisation Use a fresh bridge, stabilise temperature and define a reading time or stability criterion.
Different groups get very different values Inconsistent cleaning, concentrations, meters, temperatures or bridge preparation Standardise preparation, cross-check meters and use a common reference cell.
Precipitate at bridge end Bridge ion has reacted, for example Cl- with Ag+ Discard the result, replace solutions and use a compatible bridge electrolyte.
Iron half-cell gives poor repeatability Oxide/rust, Fe2+ oxidation by air or contamination Use freshly prepared solution and freshly polished iron; minimise exposure and delays.
Magnesium result is unreliable Passivation and reaction with water interfere with the intended equilibrium Use as an evaluation example rather than a precision reference unless the method has been validated.

Common misconceptions and student mistakes

Common misconceptions

"The salt bridge carries electrons."
False. It carries ions; electrons move through the external circuit.

"The more reactive metal must be the positive electrode."
In the Zn/Cu voltaic cell, the metal more readily oxidised is the negative anode.

"Doubling electrode area doubles Ecell."
Open-circuit potential is not proportional to electrode area, although area can affect stabilisation and current under load.

"Cathodes are always positive."
Cathodes are always sites of reduction, but their sign depends on whether a cell is voltaic or electrolytic.

More misconceptions to challenge

"A positive E°cell means the reaction must be fast."
It indicates thermodynamic feasibility under stated conditions, not reaction rate.

"E° values are measured for single electrodes on their own."
They are defined and measured relative to a reference electrode.

"Room temperature automatically means standard conditions."
Standard treatment also requires specified pressure and ionic activity/concentration conditions.

Common student mistakes

Mistake Consequence
Using a dry or barely wet bridge Zero, low or unstable voltage.
Putting the wrong metal in a solution The intended half-cell is not constructed; contamination may occur.
Touching cleaned electrode surfaces Grease and salts alter the interface and repeatability.
Allowing crocodile clips to touch solution Contamination, corrosion and competing electrode materials.
Recording magnitude but not sign or lead connections Polarity cannot be interpreted.
Using an ammeter or shorting the electrodes Large current, rapid polarisation and chemical change.
Reusing a contaminated bridge Half-cell compositions change and results drift.
Adding E° values without considering direction Incorrect E°cell.
Multiplying E° by the number of electrons Incorrect because potential is not an extensive quantity.
Calling the cell reading "the zinc electrode potential" A complete cell potential has been measured, not an isolated electrode potential.

Evaluation, uncertainty and extension

Sources of uncertainty and improving accuracy

Source of variation or bias Effect on result Improvement
Meter resolution and calibration Limits discrimination and may introduce systematic offset. Use a calibrated high-input-resistance meter with 0.001 V resolution for small effects.
Electrode oxide, grease or corrosion Slow or unstable interfacial response; poor repeatability. Polish consistently immediately before each trial; rinse, blot and avoid touching.
Concentration error Changes electrode potentials and the overall reaction quotient. Prepare solutions with volumetric glassware; label clearly; use dedicated pipettes.
Temperature variation Changes equilibrium potentials and may alter stabilisation behaviour. Allow thermal equilibration; use a thermostated water bath for high-precision work.
Salt bridge drying or inconsistent saturation Increases internal resistance and may cause slow stabilisation, drift or an abnormally low reading. Use fresh bridges of identical dimensions and a fixed soaking time.
Bridge electrolyte reacts with half-cell Changes composition or forms a precipitate. Choose an inert electrolyte; avoid chloride with Ag+.
Liquid-junction potential Adds an unmeasured potential at the interface. Use a concentrated inert bridge electrolyte with similar ion mobilities and acknowledge residual bias.
Cross-contamination Changes concentrations and may introduce competing redox couples. Use a fresh bridge and clean apparatus for every pair; separate droppers and electrodes.
Reading taken too early Captures transient response rather than stable open-circuit potential. Use a defined stability criterion and record time-series readings.
Non-independent repeats Underestimates variation. Reconstruct the apparatus rather than merely rereading the same cell.
Passivation or side reactions Measured potential may not represent the intended couple. Select suitable metals, use fresh surfaces and discuss kinetics separately from thermodynamics.

Accuracy, precision and validity

  • Precision is indicated by the spread of independent repeated measurements.
  • Accuracy can only be evaluated against an accepted reference or theoretical prediction that corresponds closely to the actual conditions.
  • Validity depends on whether the apparatus genuinely measures the intended cell potential without important competing reactions or uncontrolled concentration changes.

High-value evaluation point

The largest discrepancy is not always random meter uncertainty. Departure from standard conditions, non-ideal activities, surface films and liquid-junction potentials can produce systematic differences that repeats will not remove.

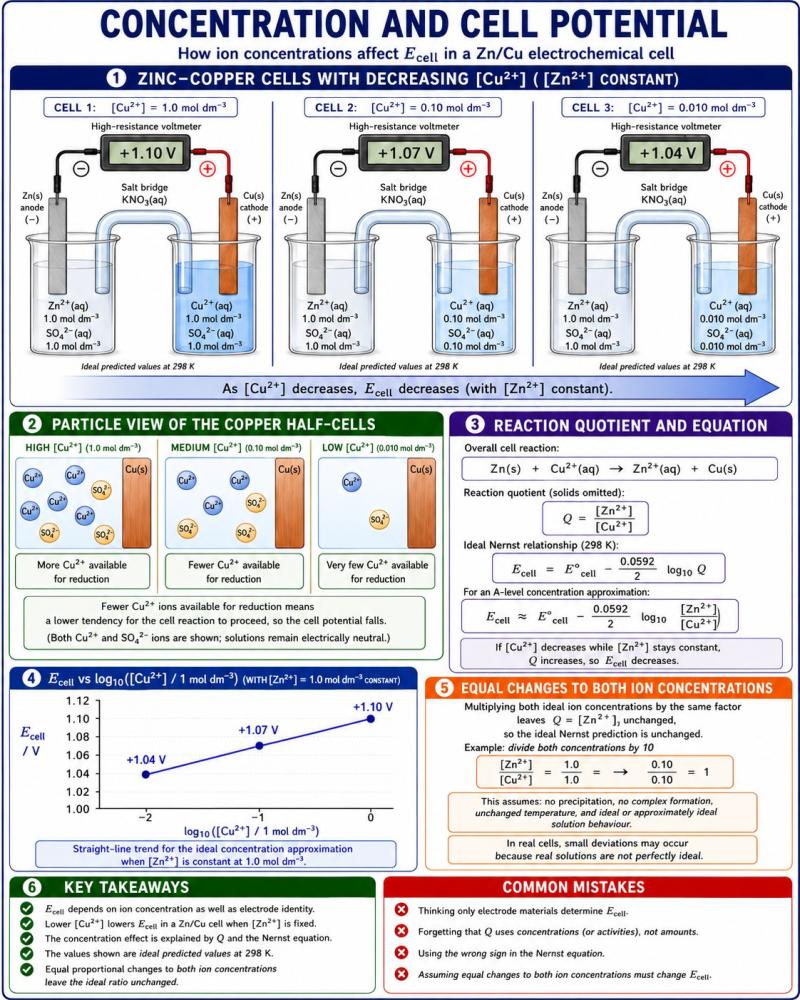

Extension investigation: concentration and cell potential

Research question: How does copper(II)-ion concentration affect the cell potential of a zinc-copper electrochemical cell?

Independent variable: CuSO4 concentration, for example 0.100, 0.0100 and 0.00100 mol dm-3, prepared by accurate serial dilution.

Dependent variable: stable open-circuit Ecell, preferably measured to 0.001 V.

Expected trend: lowering [Cu2+] increases the reaction quotient [Zn2+]/[Cu2+] and should reduce Ecell. The relationship is logarithmic rather than linear in concentration.

Control variables

  • Zinc sulfate concentration and volume.
  • Copper solution volume.
  • Temperature of both half-cells.
  • Electrode material, preparation and immersed area.
  • Salt-bridge composition, dimensions and soaking time.
  • Meter, leads, stabilisation time and reading criterion.
  • Beaker geometry and distance between half-cells.
  • Order of measurements, or randomise order to reduce drift bias.

Method outline

  1. Prepare the CuSO4 concentration series with suitable volumetric apparatus.
  2. Construct a fresh Zn/Cu cell for each concentration using identical ZnSO4 and a fresh bridge.
  3. Measure temperature and record the signed stable potential.
  4. Complete at least three independent repeats at each concentration.
  5. Calculate mean and spread.
  6. Plot Ecell against log10[Cu2+].
  7. Compare the trend and gradient with the Nernst prediction where this is within the course.

Alternative extension: construct an electrochemical series using several pairwise cell potentials such as Zn2+/Zn, Fe2+/Fe, Cu2+/Cu and, where approved, Ag+/Ag. Use one half-cell as a reference, retain the signs and derive a consistent order of reduction potentials.

concentration and cell potential

Advanced evaluation points (A/A*)

Activity rather than simple concentration

Strict electrochemical thermodynamics uses activities. At higher ionic strength, activity coefficients mean that a 1.00 mol dm-3 solution does not behave ideally.

Liquid-junction potentials

The boundary between bridge electrolyte and half-cell solution contributes a small potential because ions diffuse at different rates.

Reference electrodes

A single electrode potential is not directly measurable. The standard hydrogen electrode defines zero; practical laboratories often use secondary reference electrodes.

Open circuit versus loaded cell

EMF is measured with negligible current. Under load, terminal potential is reduced by internal resistance, polarisation and concentration changes.

Kinetics versus thermodynamics

A positive E°cell does not overcome a large activation barrier or passivating film. Aluminium and magnesium can illustrate this limitation.

Potential is intensive

E° is not multiplied by stoichiometric coefficients. By contrast, ΔG° and charge transferred scale with the amount of reaction.

Thermodynamic and equilibrium links

ΔG° = -nFE°cell

Combining ΔG° = -RT ln K with ΔG° = -nFE°cell gives ln K = nFE°cell/RT.

Temperature, inert electrodes and repeatability

E changes with temperature according to reaction entropy; there is no universal "temperature increases voltage" rule. Inert Pt or graphite provides an electron-transfer surface for solution redox couples, and closely grouped repeats can still share systematic bias.

Advanced worked example: Fe3+/Fe2+ and Cu2+/Cu

E°(Fe3+/Fe2+) = +0.77 V and E°(Cu2+/Cu) = +0.34 V, so Fe3+/Fe2+ is reduced and copper is oxidised.

Cathode: 2Fe3+ + 2e- → 2Fe2+
Anode: Cu → Cu2+ + 2e-
Overall: 2Fe3+ + Cu → 2Fe2+ + Cu2+

cell = +0.77 - (+0.34) = +0.43 V

Cell notation: Cu(s) | Cu2+(aq) || Fe3+(aq), Fe2+(aq) | Pt(s)

Teacher and technician preparation

Technician tips for high success rates

  • Use small beakers placed close together so the bridge is stable and fully immersed.
  • Mark a common immersion line on each electrode.
  • Provide one fresh bridge per cell rather than rinsing and reusing bridges.
  • Use a meter with 0.01 V or 0.001 V resolution for concentration extensions; two decimal places are adequate for the core Zn/Cu comparison.
  • Set a clear stability criterion and agreed recording time.
  • Supply a polarity diagram showing red-on-copper and black-on-zinc for the core cell.
  • Keep a reference cell at the front for checking suspect meters or leads.
  • Use class data to distinguish random variation from a whole-class systematic offset.

Before the lesson

  • Select a validated core method and complete a current, concentration-specific risk assessment.
  • Prepare and clearly label zinc sulfate, copper(II) sulfate and bridge electrolyte with concentration and hazard information.
  • Cut metal strips to similar dimensions; do not polish too early.
  • Cut identical filter-paper bridges and pre-soak shortly before use; keep them covered and wet.
  • Check every voltmeter, lead and crocodile clip with a known source.
  • Set out labelled metal-ion waste and a separate silver-waste container if Ag is used.
  • Provide dedicated pipettes or measuring cylinders to reduce cross-contamination.
  • Prepare a teacher reference Zn/Cu cell and record the expected range under actual laboratory conditions.
  • If using Fe2+, prepare it freshly where practicable and minimise air exposure.
  • If using AgNO3, use only the approved concentration, protect from unnecessary light and avoid chloride contamination.

During the lesson

  • Demonstrate that the meter displays V(red) - V(black) before students connect the cell.
  • Demonstrate correct polishing, rinsing and handling of electrodes.
  • Check every bridge is fully wet and both ends are immersed before troubleshooting the meter.
  • Keep crocodile clips above solution level.
  • Prevent direct short circuits between the electrodes.
  • Require students to record sign, unit, temperature, concentration and lead connections.
  • Challenge students to distinguish cell potential from a single electrode potential.
  • Monitor disposal continuously.

Suggested lesson timing for a 60-75 minute lesson

Stage Activity Time / min
1 Context, redox recap and learning objectives 5
2 Safety briefing and apparatus demonstration 7
3 Prepare solutions, electrodes and salt bridge 10
4 Construct core Zn/Cu cell and record stability readings 10
5 Independent repeats or additional half-cell pairs 10-15
6 Process data and calculate E°cell 10
7 Interpret polarity, equations and cell notation 8
8 Evaluation, exam questions and plenary 5-10

Teacher assessment opportunities

Observe whether a student:

  • Selects and uses eye protection and handles solutions safely.
  • Matches each metal electrode with the correct ion solution.
  • Cleans electrodes consistently without touching the active surface.
  • Constructs a complete ionic and electronic circuit.
  • Uses the meter correctly and records sign, unit and connections.
  • Obtains repeated measurements and applies a justified stability criterion.
  • Calculates a mean and E°cell correctly.
  • Writes balanced half-equations, overall equation and cell notation.
  • Explains ion migration through the bridge.
  • Evaluates non-standard conditions, systematic effects and kinetic limitations.

Risk assessment

Overall risk: low to moderate after suitable controls. Schools should complete their own current risk assessment using concentration-specific safety information and local laboratory procedures.

Hazard Main risk Control measures
Zinc sulfate solution Harmful if swallowed; eye/skin exposure; environmental harm depending on concentration Wear eye protection; use small volumes; clean spills promptly; avoid ingestion/contact; collect as metal-ion waste.
Copper(II) sulfate solution Eye/skin exposure and environmental harm depending on concentration Wear eye protection; minimise volume; prevent release; collect in labelled waste.
Saturated potassium nitrate Oxidising; can intensify combustion, particularly if allowed to dry on paper Keep away from flames, heat and reducing/combustible materials; use small quantities; keep soaked paper wet until approved disposal.
Iron(II) sulfate solution, optional Harmful at higher concentration; stains and spills Eye protection; small quantities; avoid contact; collect as metal-ion waste.
Silver nitrate, optional Oxidising, eye/skin damage at higher concentration, staining and environmental harm Use only an approved dilute concentration; teacher control where appropriate; avoid chloride; keep silver waste separate.
Metal strips and abrasive paper Sharp edges, splinters, metal dust and contaminated hands Handle by edges; avoid vigorous abrasion; wash hands; do not touch the face.
Glassware Breakage and cuts Keep beakers away from bench edges; clear breakages with proper equipment.
Electrical connections Very low shock risk, but short circuits can heat wires and alter chemistry Use only low-voltage measuring equipment; avoid direct short circuits; inspect insulation.

Disposal: collect metal-ion solutions and contaminated bridges in labelled waste according to local policy. Do not pour them into sinks unless the institution's current procedure explicitly permits it. Keep silver-containing waste separate.

Exam support

Common exam questions

1. Why is a salt bridge required?

It completes the internal ionic circuit and allows ions to migrate so charge does not rapidly build up in either half-cell.

2. State the direction of electron flow in a Zn/Cu cell.

From the zinc anode to the copper cathode through the external circuit.

3. Write the half-equations and overall equation.

Zn(s) → Zn2+(aq) + 2e-; Cu2+(aq) + 2e- → Cu(s); overall Zn(s) + Cu2+(aq) → Zn2+(aq) + Cu(s).

4. Calculate E°cell from +0.34 V and -0.76 V.

cell = +0.34 - (-0.76) = +1.10 V.

5. Why is a high-resistance voltmeter used?

It draws very little current, so the reading is close to the near-open-circuit cell potential and half-cell compositions change only slightly.

6. A meter reads -1.08 V with red on Zn and black on Cu. Explain.

Zinc is at lower potential than copper, so V(red) - V(black) is negative. The lead polarity is reversed relative to the conventional positive reading.

7. Why are electrodes polished immediately before use?

To remove oxide, corrosion and grease and produce a more reproducible metal-solution interface.

8. Why might measured Ecell differ from E°cell?

The cell may not be at 298 K or standard activity; surfaces may be imperfect; junction potentials, contamination, passivation and meter limitations can contribute.

9. Write the conventional cell representation for Zn/Cu.

Zn(s) | Zn2+(aq) || Cu2+(aq) | Cu(s).

10. Predict the effect of decreasing [Cu2+] with other conditions fixed.

Ecell decreases because the reaction quotient [Zn2+]/[Cu2+] increases, making the forward reaction less thermodynamically favourable.

11. Why must E° values not be multiplied when half-equations are scaled?

Potential is an intensive property. Scaling the amount of reaction changes charge and Gibbs energy proportionally, but not the potential difference.

12. What can be concluded from a positive E°cell?

The reaction as written is thermodynamically feasible under standard conditions. It may still be kinetically slow or inhibited.

Examiner advice summary

  • Treat every tabulated half-equation as a reduction unless the question states otherwise.
  • Choose the more positive E° for reduction at the cathode.
  • Use E°cell = E°cathode - E°anode, or right minus left for correctly written cell notation.
  • Keep the negative sign when subtracting a negative potential.
  • Do not multiply E° values when balancing electrons.
  • Write state symbols and include an inert electrode where required.
  • Distinguish electron flow in the wire from ion movement in the salt bridge.
  • State the meter-lead connections when interpreting a signed voltage.
  • Use "thermodynamically feasible under standard conditions", not "definitely reacts quickly".
  • Explain departures from E° using actual conditions, activity, surfaces, junctions, contamination and instrument limitations.
  • Do not call the measured complete-cell voltage a single electrode potential.
  • Quote values with units and sensible significant figures.

Suggested plenary

Plenary question Expected answer
What is oxidised in a zinc-copper electrochemical cell? Zinc is oxidised.
In which direction do electrons flow? From the zinc anode to the copper cathode through the external circuit.
What is the purpose of the salt bridge? It completes the circuit and allows ions to move between half-cells, maintaining electrical neutrality.
How is the standard cell potential calculated? cell = E°cathode - E°anode.
Why must E° values not be multiplied when balancing half-equations? Electrode potential is an intensive property, so it does not change when a half-equation is multiplied.
Why is little visible chemical change usually observed? The high-resistance voltmeter allows only a very small current to flow, so very little zinc dissolves or copper is deposited.

Frequently asked questions

Why is little visible chemical change observed?

A high-resistance voltmeter draws only a tiny current, so very little zinc dissolves or copper is deposited during the measurement.

Why must both bridge ends be immersed?

Both ends must contact the half-cell solutions to complete the internal ionic circuit.

Does a negative meter reading mean the experiment failed?

No. It normally means the red lead is connected to the lower-potential electrode. Record the sign and lead connections.

Why is the measured result not automatically E°cell?

The classroom cell may not be at 298 K, unit activity or other standard conditions, and it also includes surface and liquid-junction effects.

Continue your A Level Chemistry learning

Explore practical equipment and laboratory planning resources from Better Equipped.

About this guide

This guide was written and reviewed by Better Equipped's technical team and further reviewed by former A Level Science Teachers. Our technical team draw on experience supplying practical science equipment to schools, colleges, laboratories and science departments throughout the UK. They include ex-school laboratory technicians and are here to support schools, colleges and laboratories. If you have feedback on this guide, we'd love to here it so please contact us. Don't forget we will be regularly updating our guides and resources on our Better-Resources Hub. If you would like us to cover a particular subject matter in these guides or have some top tips you'd like to share then again we'd love to hear from you.

Last reviewed and updated: August 2026

Everything you need for this practical

Browse voltmeters, connecting leads, beakers, measuring cylinders, thermometers, electrodes and general A Level Chemistry practical equipment.
